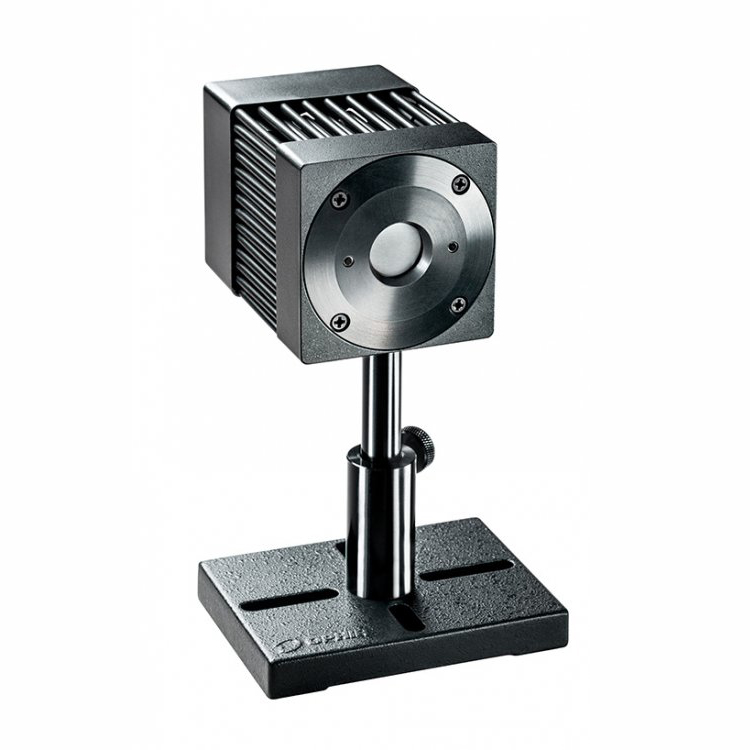

Ophir F80(120)A-CM-17 Low-Medium Power Thermal Sensor (100mW-120W)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Absorber Type: CM
Aperture: Ø17.5mm
Spectral Range: 0.248μm-9.4μm
Power Range: 100mW-120W
Energy Range: 50mJ-200J
Dimensions: 64 L x 64 W x 93 D (mm)
Max Pulse Energy: 200J
Max Average Power Density: 35kW/cm²
Response Time: 2 s
Max Energy Density (for <100ns): 0.7J/cm²
Max Energy Density (for 2ms): 45J/cm²
Max Average Power: 120W
Compliance: CE, UKCA, China RoHS
