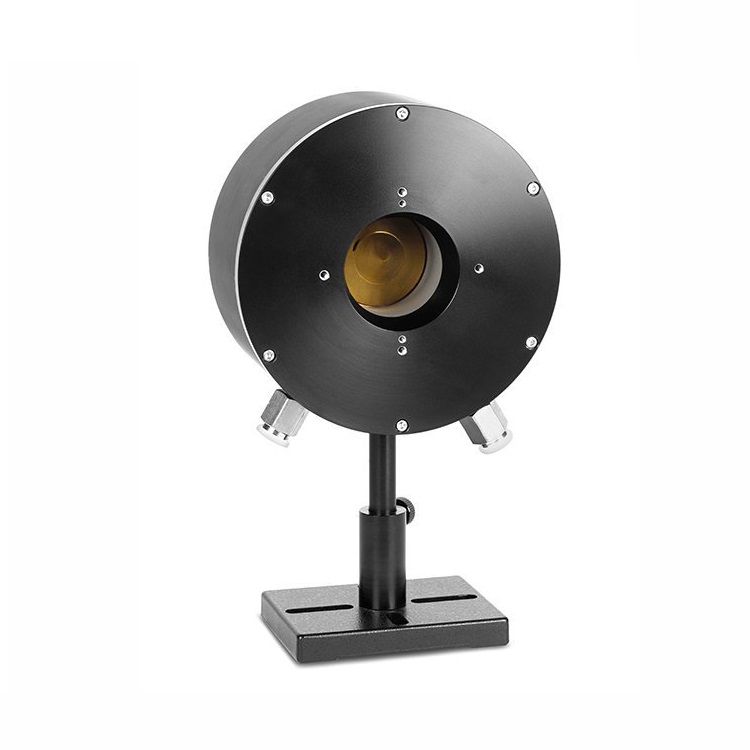

Ophir 10K-W-BB-45 High Power Thermal Sensor (100W-11,000W)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Absorber Type: Beam deflector + broadband absorber
Aperture: Ø45mm
Spectral Range: 0.8-2µm, 10.6µm
Power Range: 100W-11,000W
Energy Range: N.A.
Backscattered Power: ~3.5% without Scatter Shield, ~1% with Scatter Shield
Dimensions: Ø146 W x 70 D (mm)
Max Pulse Energy: N.A.
Max Average Power Density: 10kW/cm²
Response Time: 2.7 s
Max Energy Density (for <100ns): N.A.
Max Energy Density (for 2ms): N.A.
Max Average Power: 11kW
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
