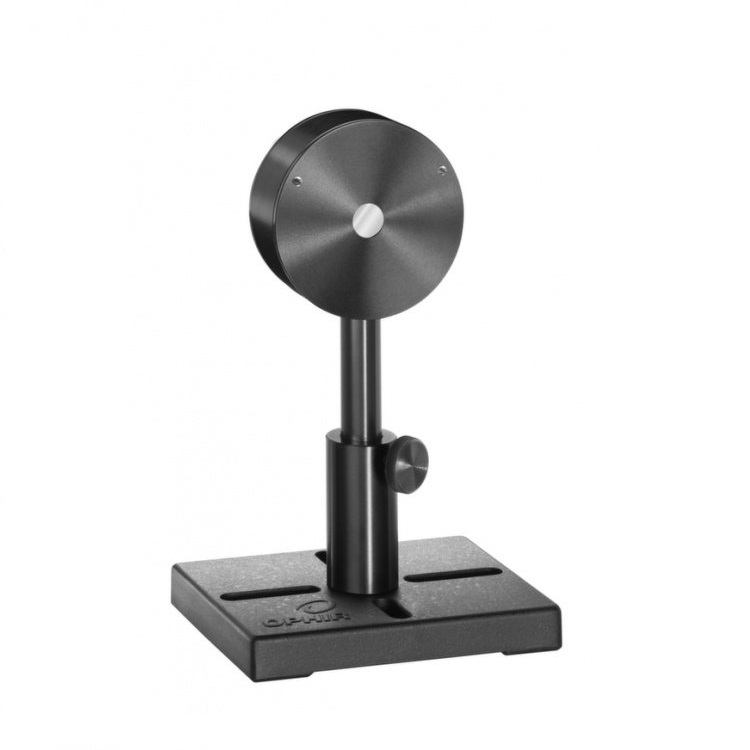

Ophir PD10-C Photodiode Energy Sensors

Use: Low energy

Aperture: Ø10mm

Absorber Type: Si photodiode

Spectral Range: 0.19 - 1.1 µm

Surface Reflectivity.: 50%

Calibration Uncertainty: ±5%

Energy Scales: 20µJ to 20nJ

Lowest Measurable Energy: 1nJ at 900nm

Max Pulse Width: 0.005ms

Maximum Pulse Rate pps: 20kHz

Noise on Lowest Range: 0.05nJ

Damage Threshold: 0.1 J/cm2

Maximum Average Power: 50mW at 800nm

Maximum Average Power Density: 50W/cm2

Maximum Energy vs. Wavelength: <300nm; 15µJ

350; 550nm 8µJ

>800nm; 5µJ

Fiber Adapters Available: ST, FC, SMA, SC

Weight: 0.25kg

Compliance: CE, UKCA, China RoHS
