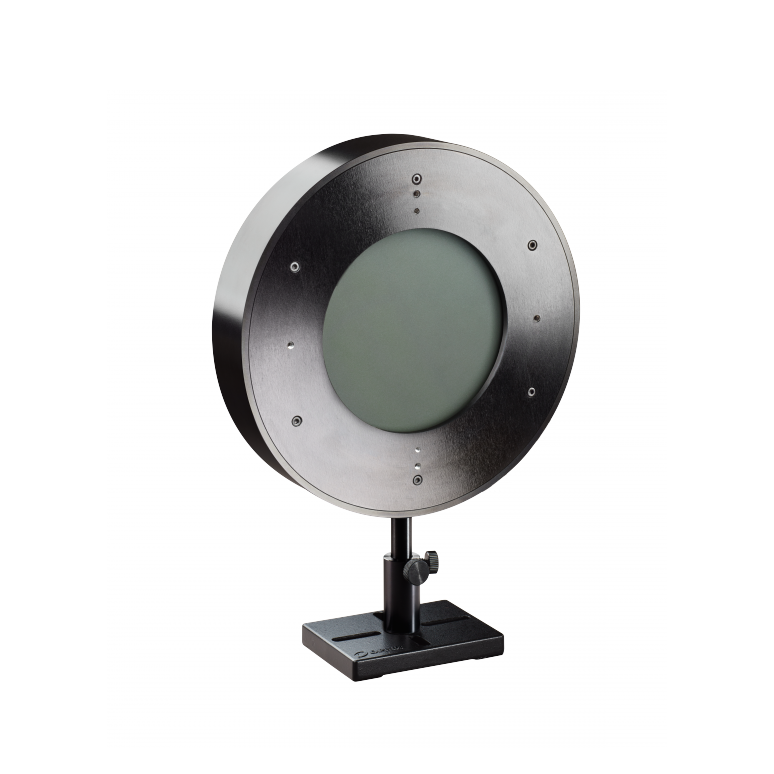

Ophir L100(500)A-PF-120 Medium Power Thermal Sensor (1W-500W)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Absorber Type: PF volume absorber
Aperture: Ø120mm
Spectral Range: 0.15-20µm
Power Range: 1W-500W
Energy Range: 6J-6000J
Dimensions: Ø200 W x 35 D (mm)
Max Pulse Energy: 6000J
Max Average Power Density: 2kW/cm²
Response Time: 7 s
Max Energy Density (for <100ns): 1.5J/cm²
Max Energy Density (for 2ms): 15J/cm²
Max Average Power: 500W
Compliance: CE, UKCA, China RoHS
