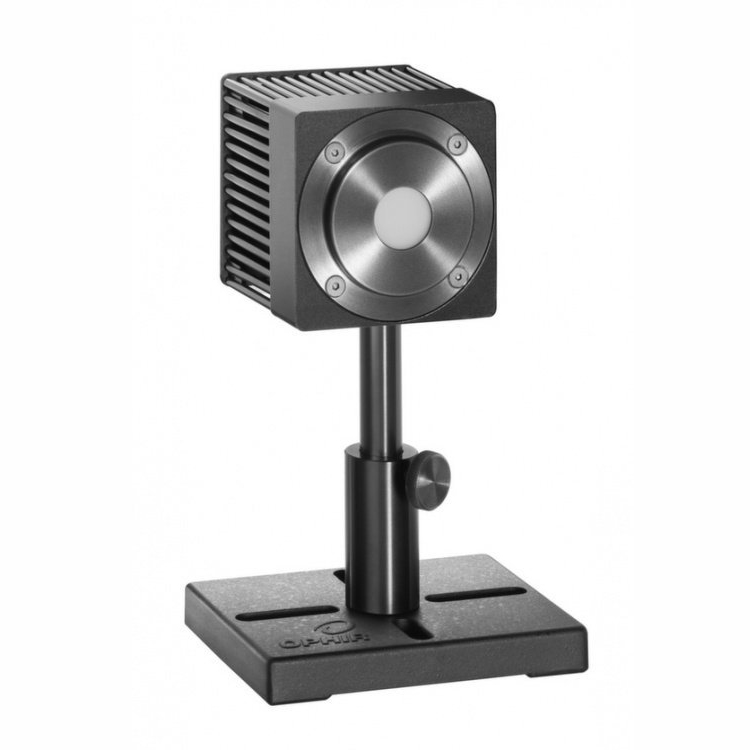

Ophir 50A-PF-DIF-18 Low Power Thermal Sensor (140mW-50W)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Absorber Type: PF type + diffuser
Aperture: Ø17.5mm
Spectral Range: 0.24-2.2µm
Power Range: 140mW-50W
Energy Range: 60mJ-200J
Backscattered Power: N.A.
Dimensions: 64 L x 64 W x 75 D (mm)
Max Pulse Energy: 200J
Max Average Power Density: 0.5kW/cm²
Response Time: 2 s
Max Energy Density (for <100ns): 4J/cm²
Max Energy Density (for 2ms): 50J/cm²
Max Average Power: 50W
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
