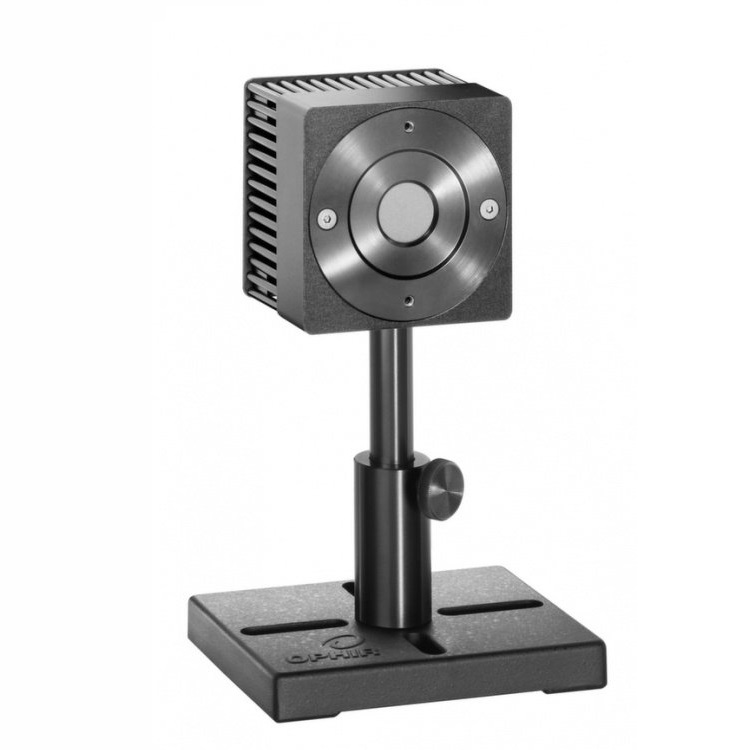

Ophir 30A-P-17 Low Power Thermal Sensor (60mW-30W)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Absorber Type: P type
Aperture: Ø17mm
Spectral Range: 0.15-8µm
Power Range: 60mW-30W
Energy Range: 40mJ-30J
Backscattered Power: N.A.
Dimensions: 64 L x 64 W x 48 D (mm)
Max Pulse Energy: 30J
Max Average Power Density: 0.05kW/cm²
Response Time: 2.5 s
Max Energy Density (for <100ns): 1J/cm²
Max Energy Density (for 2ms): 1J/cm²
Max Average Power: 30W
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
