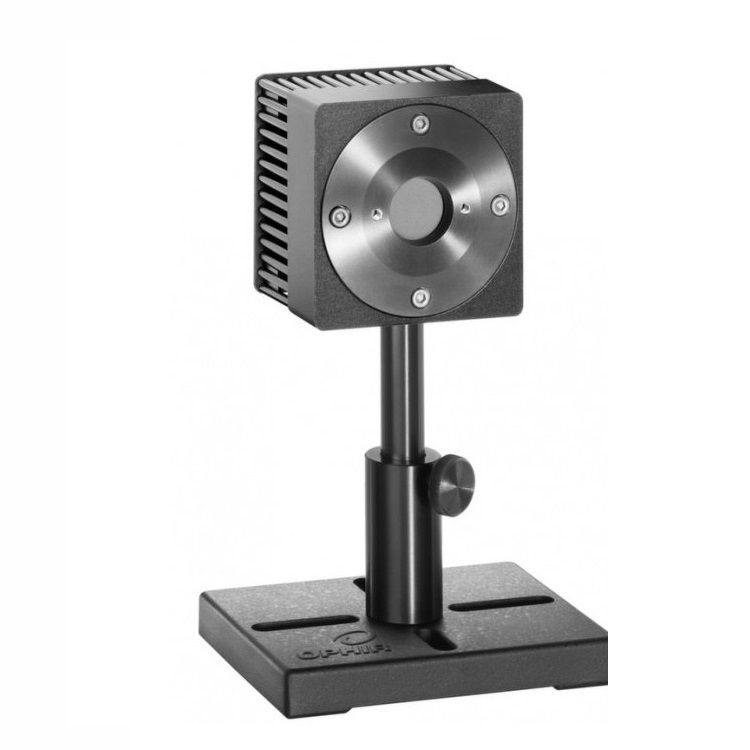

Ophir 30A-BB-18 Low Power Thermal Sensor (10mW-30W)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Absorber Type: Broadband
Aperture: Ø17.5mm
Spectral Range: 0.19-20µm
Power Range: 10mW-30W
Energy Range: 6mJ-30J
Backscattered Power: N.A.
Dimensions: 64 L x 64 W x 49 D (mm)
Max Pulse Energy: 30J
Max Average Power Density: 20kW/cm²
Response Time: 0.8 s
Max Energy Density (for <100ns): 0.3J/cm²
Max Energy Density (for 2ms): 2J/cm²
Max Average Power: 30W
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
