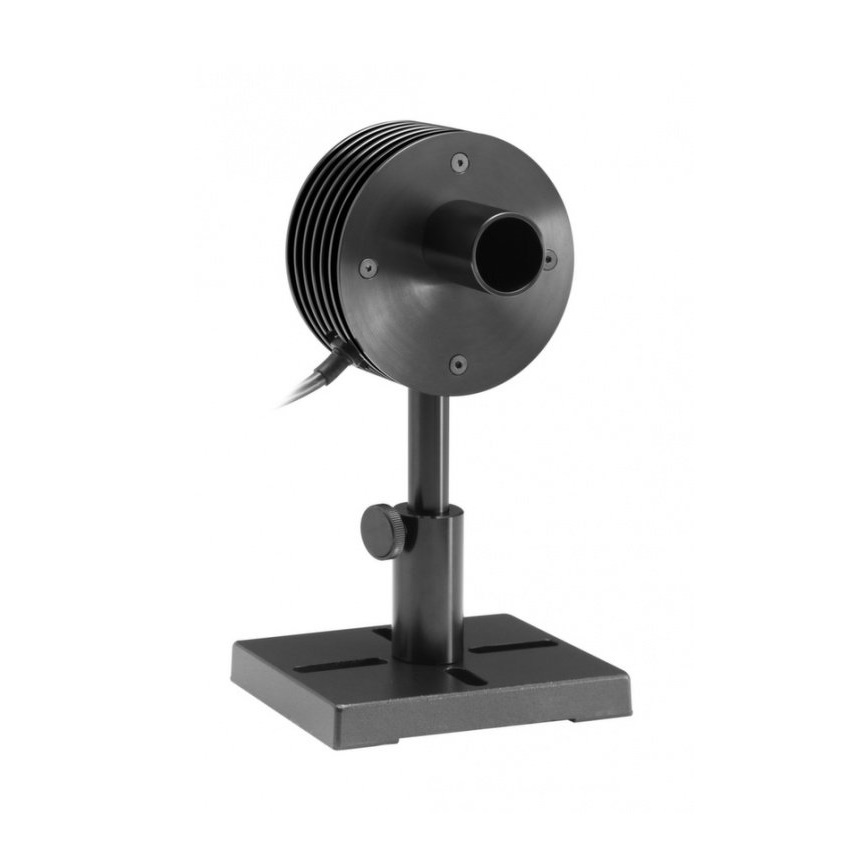

Ophir 12A High Sensitivity Thermal Laser Sensor (2mW-12W)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Absorber Type: Broadband
Aperture: Ø16mm
Spectral Range: 0.19-20µm
Power Range: 2mW-12W
Energy Range: 1mJ-30J
Backscattered Power: N.A.
Dimensions: Ø80 W x 38 D (mm)
Max Pulse Energy: 30J
Max Average Power Density: 25kW/cm²
Response Time: 3 s
Max Energy Density (for <100ns): 0.3J/cm²
Max Energy Density (for 2ms): 10J/cm²
Max Average Power: 12W
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
