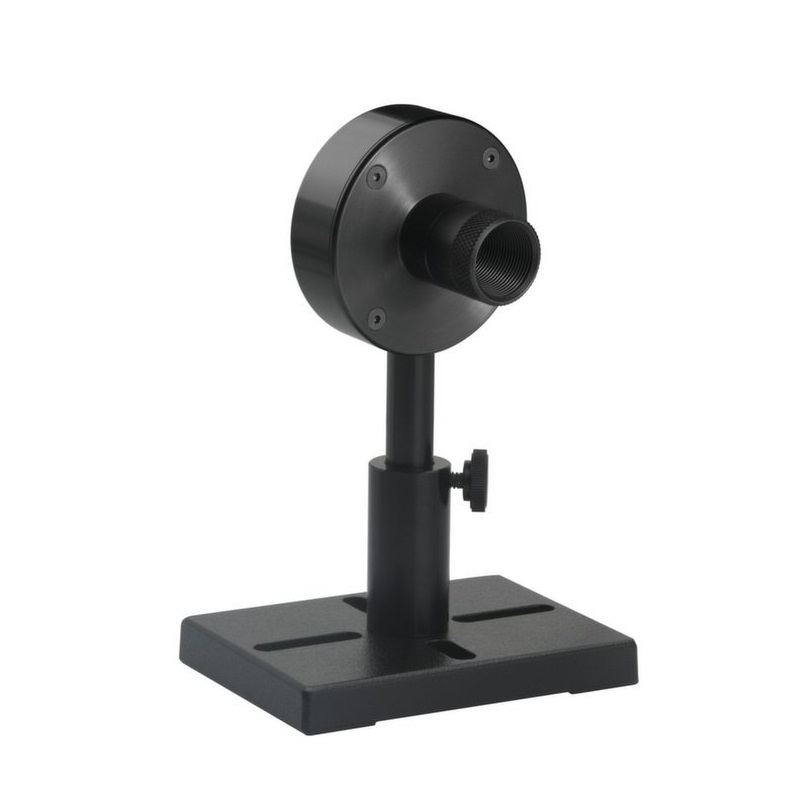

Ophir 3A High Sensitivity Thermal Laser Sensor (10µW-3W)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Absorber Type: Low power broadband
Aperture: Ø9.5mm
Spectral Range: 0.19-20µm
Power Range: 10µW-3W
Energy Range: 20µJ-2J
Backscattered Power: N.A.
Dimensions: Ø70 W x 30 D (mm)
Max Pulse Energy: 2J
Max Average Power Density: 1kW/cm²
Response Time: 1.8 s
Max Energy Density (for <100ns): 0.3J/cm²
Max Energy Density (for 2ms): 2J/cm²
Max Average Power: 3W
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
