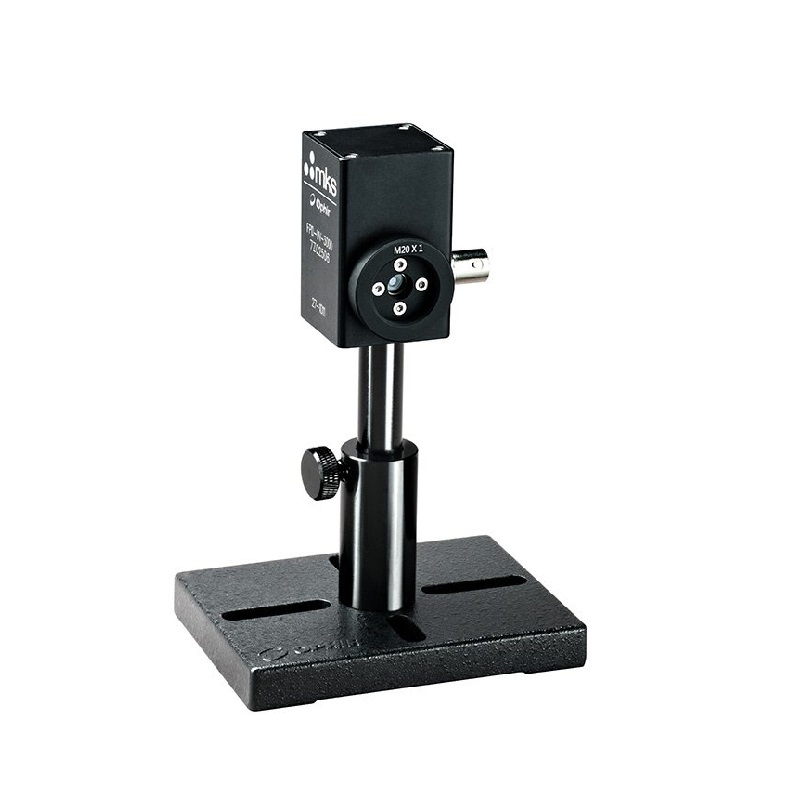

Ophir FPD-IG-175 Pulse Characterization Sensors

Detector Type: InGaAs

Rise Time/Fall Time: <0.175 nsec

Spectral Range: 900-1700 nm

Active Area Diameter: 0.1 mm

Noise Equivalent Power: <0.03 pW/√Hz

Dimensions: 54 L x 34 W x 40 D (mm)

Detector Area: 0.0079 mm²

Responsivity at Peak Wavelength: 1.1 A/W

Responsivity (Irradiance) at Peak Wavelength: 4.3 x 10⁻³ V/(W/cm²)

Bias Voltage: 6 VDC

Bias Voltage Source: Batteries

Bandwidth: >2 GHz

Dark Current: <2 nA

Maximum Average Power Input: 10 mW

Mounting (Tapped Holes): 8-32 & M4

Output Connector: BNC

Accessory Threads: M20x1

Compliance: CE, UKCA, China RoHS
