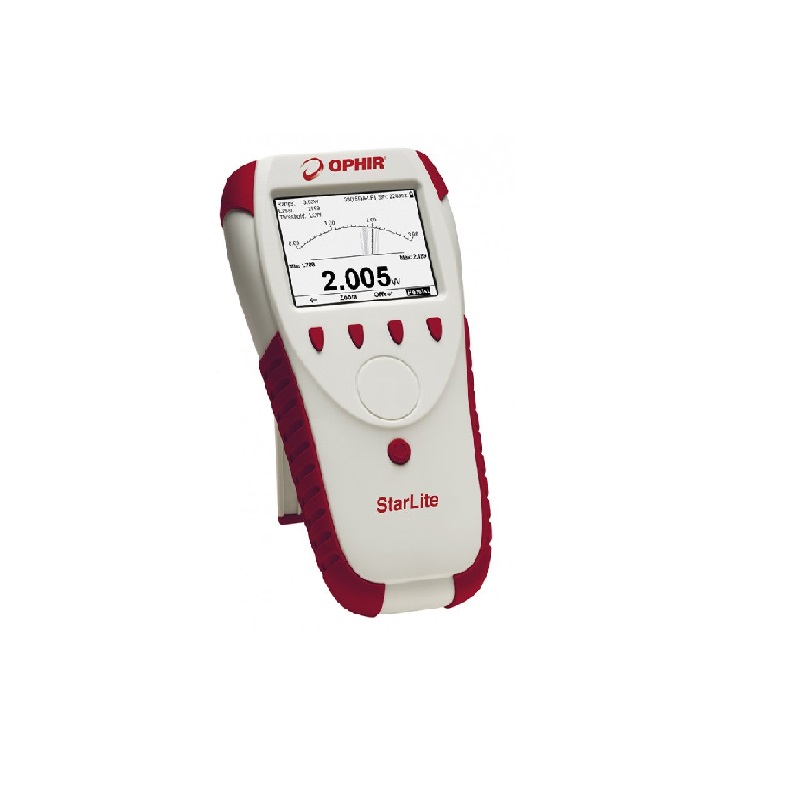

Ophir StarLite Laser Power & Energy Meter

Power Meter: High legibility 320 x 240 pixel graphics LCD. Large 16mm digits. High resolution analog needle also can be chosen.

Features: Power, single shot energy, energy and frequency of high rep rate lasers, position, and size.

Outputs: 1V Full Scale analog output.

Case: Molded high impact plastic with optimized angle kickstand.

Size: Folds to a compact 211mm L x 114mm W x 40mm H

Battery: Rechargeable Li-ion batteries with typically 8 hours between charges. The charger can be ordered from your local distributor. The charger also functions as an AC adapter.

Sensor Compatibility: Works with Thermopile, BeamTrack, Pyroelectric (PE-C series) and Photodiode sensors. Works with our PD300RM sensors.

Compliance: CE, UKCA, China RoHS
