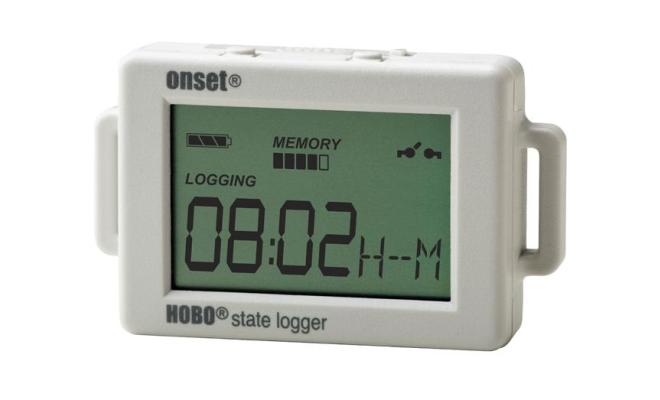

Onset UX90-001 HOBO State Data Logger (1 Hz)

Internal Sensor:

Maximum State, Event, Runtime Frequency: 1 Hz

External Input:

External Contact Input: Electronic solid state switch closure or logic driven voltage output

Range: 0 to 3 V DC (USB powered), 0 to 2.5 V DC (battery powered)

Maximum Pulse Frequency: 50 Hz

Maximum State, Event, Runtime Frequency: 1 Hz

Pulse, Event Lockout Time: 0 to 1 second in 100 ms steps

Solid State Switch Closure:

Input Low: < 10 KΩ;

Input High: > 500 KΩ

Internal Weak Pull-Up: 100 KΩ

Input Impedance:

Solid state switch closure: 100 KΩ pull up

Logger:

Resolution: Pulse: 1 pulse

Runtime: 1 second

State and Event: 1 State or Event

Logging Rate: 1 second to 18 hours, 12 minutes, 15 seconds

Time Accuracy: ±1 minute per month at 25°C (77°F)

Power Source: One 3V CR2032 lithium battery and USB cable

Memory: 128 KB (84,650 measurements, maximum)

Logger Operating Range:

Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)

Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification

LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

Size: 3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.)

Weight: 23 g (0.81 oz)

What's In The Box:

HOBO UX90-001x State Data Logger

2.5 mm input cable

Command™ strip

Double-sided tape

Hook & loop strap

Magnet with 2 screws

Records state changes, electronic pulses, and mechanical or electrical contact closures from external sensing devices. Ideal for monitoring energy consumption, mechanical equipment operation, and water and gas flow.
