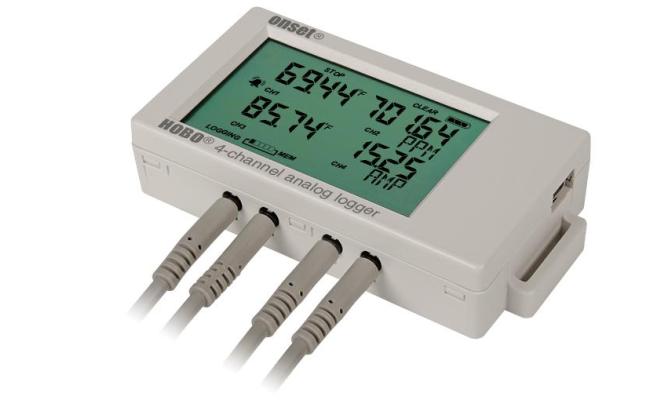

Onset UX120-006M HOBO 4-Channel Analog Data Logger (0~24 V)

Logger with cable type:

Measurement range:

w/CABLE4-20mA: 0 to 20.1 mA

w/CABLE-2.5-STEREO: 0 to 2.5 V

w/CABLEADAP5: 0 to 5.0 V

w/CABLEADAP10: 0 to 10 V

w/CABLEADAP24: 0 to 24 V

Accuracy:

w/CABLE4-20mA: ±0.001 mA ±0.2% of reading

w/CABLE-2.5-STEREO: ±0.1 mV ±0.1% of reading

w/CABLEADAP5: ±0.2 mV ±0.3% of reading

w/CABLEADAP10: ±0.4 mV ±0.3% of reading

w/CABLEADAP24: ±1.0 mV ±0.3% of reading

Resolution:

w/CABLE4-20mA: 0.3 µA

w/CABLE-2.5-STEREO: 40 µV

w/CABLEADAP5: 80 µV

w/CABLEADAP10: 160 µV

w/CABLEADAP24: 384 µV

Logger:

Operating Range: Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing);

Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification

Logging Rate: 1 second to 18 hours, 12 minutes, 15 seconds

Time Accuracy: ±1 minute per month at 25°C (77°F)

Power Source: Two AAA 1.5 V alkaline batteries, user replaceable, and USB cable

Memory: 4 MB (1.9 million measurements, maximum)

LCD: LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or

go blank in temperatures outside this range

Size: 10.8 x 5.41 x 2.54 cm (4.25 x 2.13 x 1 in.)

Weight: 107.5 g (3.79 oz)

What's In The Box:

HOBO UX120-006M 4-Channel Analog Data Logger

Command™ strip

Double-sided tape

Hook & loop strap

Two AAA 1.5 V alkaline batteries

A high-performance, LCD display data logger, supporting up to four external sensors to measure and record parameters such as temperature, current, voltages, and third-party sensors. This logger is ideal for energy audits, building commissioning studies, equipment scheduling, and more.
