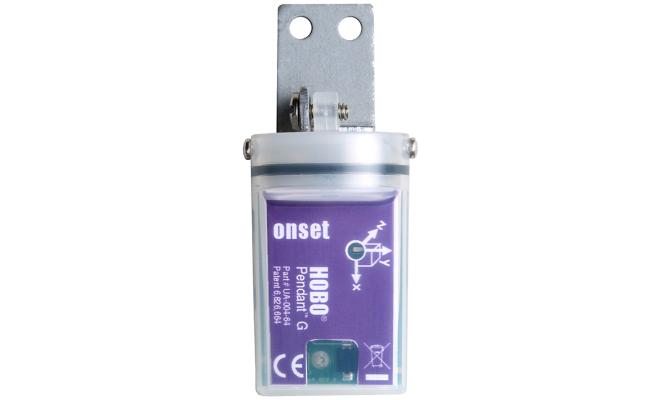

Onset UA-004-64 HOBO Pendant G Data Logger (±3 g; 29.4 m/s²)

Measurement Range: ±3 g; 29.4 m/s² (96.5 ft/s²)

Accuracy:

±0.075 g; 0.735 m/s² (2.41 ft/s²) at 25°C (77°F)

±0.105 g; 1.03 m/s² (3.38 ft/s²) from -20°C to 70°C (-4°F to 158°F)

Resolution: 0.025 g; 0.245 m/s² (0.8 ft/s²)

Logging Interval: 1 second to 18 hours, 12minutes, 15 seconds in Normal mode

0.01 seconds (100 Hz) to 0.99 seconds (1.01 Hz) in Fast mode

Time Accuracy: ±1 minute per month at 25°C (77°F)

Operating Range:

In water/ice: -20° to 50°C (-4° to 122°F)

In air: -20° to 70°C (-4° to 158°F)

Water Depth Rating: 30 m from -20° to 20°C (100 ft from -4° to 68°F)

Memory: 64K bytes (approximately 21.8K combined x-, y-, and z-axis readings or events)

Weight: 18 g (0.6 oz)

Dimensions: 58 x 33 x 23 mm (2.3 x 1.3 x 0.9 inches

What's In The Box:

HOBO UA-004-64 Pendant G Acceleration Data Logger

Mounting bracket

Screw

Measures 3-dimensional motion (acceleration and angular displacement in 1, 2 or 3 axes), providing data for users to track sports activity or medical therapy compliance and improve performance.
