Onset TMC6-HE Temperature (6') Sensor (-40°~100°C)

Measurement range: -40° to 100°C (-40° to 212°F)

Accuracy:

w/U12: ±0.25°C from 0° to 50°C (±0.45°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum;

w/ZW: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum;

w/UX120-006M, MX1104 and MX1105: ±0.15°C from 0° to 70°C (±0.27°F from 32° to 158°F), insert probe 2.3 cm (0.9 inches) minimum;

Resolution:

w/U12: 0.03° at 20°C (0.05° at 68°F);

w/ZW: 0.02°C at 25°C (0.04°F at 77°F);

w/UX120-006M, MX1104 and MX1105: 0.002° at 25°C (0.003° at 77°F);

Response time in air: 3 min. typical to 90% in air moving 1 m/sec (2.2 mph)

Housing: Copper-plated sensor tip

Dimensions: 0.9 x 5.8 cm (0.38 x 2.30 inches)

Cable length: 1.8m (6 feet)

Weight: 34 g (1.1 oz)

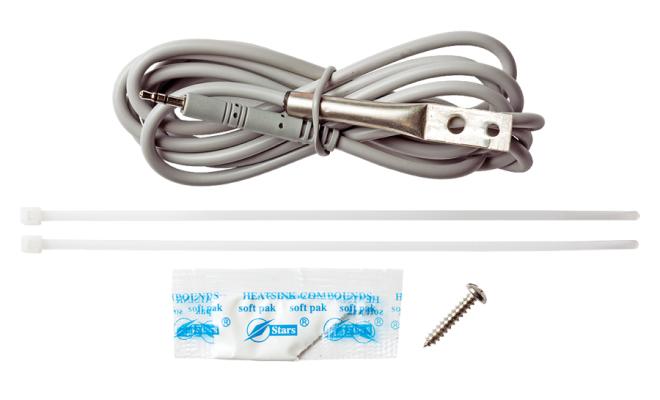

What's In The Box:

TMC6-HE Temperature (6') Sensor

2 tie wraps

1 #6 screw

Thermal grease for improved thermal conductivity

For use with HOBO® U12, UX120-006M, MX1104, and MX1105 data loggers and ZW data nodes

User's guide
