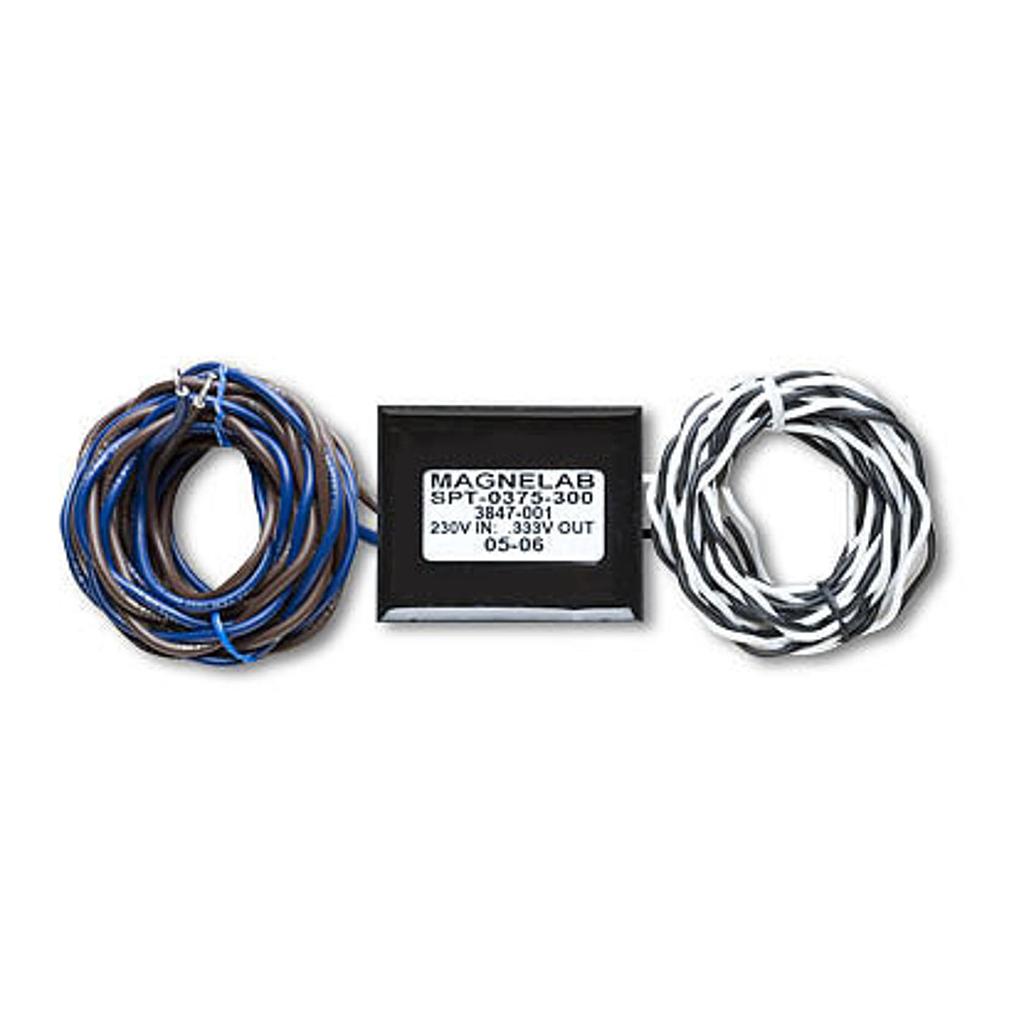

Onset T-MAG-SPT-300 AC Potential Transformer Sensor (300 V AC)

Max. Input voltage: 300 Volts AC

Accuracy: ±1% (from 10% to 130% of rated voltage)

Phase angle: <1 degree

Output signal to FlexSmart Module: 0.333 Volt at rated input voltage (0 to 230 Volts AC)

Connections: 8-ft PVC insulated wire, UL1015

High voltage input: #14 AWG, blue/brown

Low voltage output: #22 AWG twisted pair, black/white

Construction: Epoxy filled ABS plastic

Dimensions: 5.5 cm x 3.9 cm x 3.1 cm (2.2" x 1.6" x 1.2")

Weight: 491.2g (17.33oz)

Number of data channels: 1

For use with HOBO® H22, U30, and RX3000 Series Data Loggers
