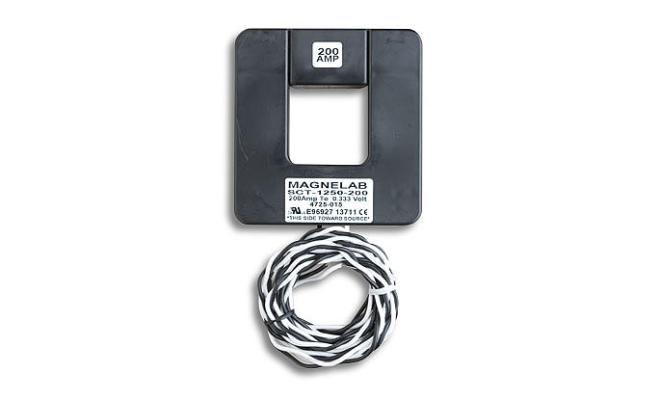

Onset T-MAG-SCT-200 200 AMP Split-core AC Current Transformer Sensor (20~200 Amp)

Rated input: from 20 Amp to 200 Amp

Output: 0.333 Volt AC at rated current

Operates: from 30 Hz to 1,000 Hz

Phase angle: < 2 degrees measured at 50% rated current

Linearity accuracy: ± 1%

8 ft. twisted-pair lead

Accuracy: at 10% to 130% of rated current

Custom output and other parameters are available

Width: 3.25 inches

Height: 3.35 inches

Thickness: 1.00 inches

Window: 1.25 inches

The Magnelab AC Current 200 Amp AC Current Transformer or CT (Magnelab part # SCT-1250-200) is mounted around a current carrying wire to measure AC Amperage. This CT provides 333mV output proportional to current and is used with the FlexSmart TRMS Module for True RMS measurement of sinusoidal and non-sinusoidal waveforms. The result is accurate current measurement for many types of equipment, including variable frequency drives and switched power sources. One or two CTs can be used with each FlexSmart TRMS Module. For use with HOBO H22, U30, and RX3000 Series Data Loggers
