Onset T-EG-1420-0400 Current Transformer Sensor (400 Amp)

Measurement range: 400 Amp

Rated ouput: 333 mVrms

Accurate: within 1% from 1% to 100% of rated amperage

Operates: 50Hz/60Hz

Maximum primary insulation: up to 600 Vrms

8' twisted pair lead with CT connector

Opening size: 1.42"

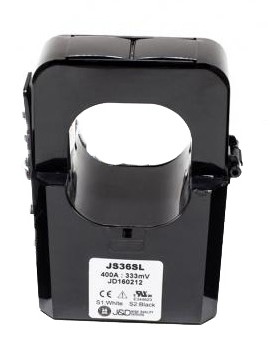

Split-core CTs from J&D Sensing offer a well-constructed hinged body and are accurate to +/-1% from 1%-100% of their stated current rating. The small interval for physical size options (10mm/0.39", 24mm/0.94", and 36mm/1.42") allow for a flexible installation. Each CT size has a hinge and clipping mechanism, making it easy to close the CT in tight situations. For use with U22, U30 USB, RX3000 data loggers.
