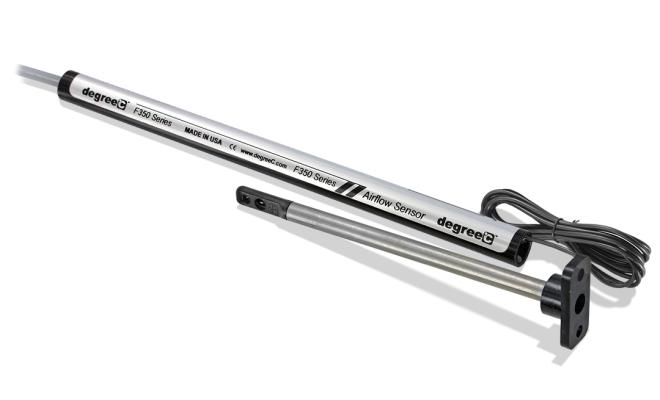

Onset T-DCI-F350-W5C3 Air Velocity & Temperature Remote Head Sensor (1.0~20 m/s)

Operating temperature range: 0°C to 60°C (32°F to 140°F)

Velocity range: 1.0 to 20 m/s (200 to 4,000 fpm)

Response time: 400ms

Storage temperature: -40°C to 105°C (-40°F - 220°F)

Relative humidity (non-condensing): 5-95%

Supply power requirements: 4.5-15 VDC, 35mA nominal

Velocity Output: 0-5V

Temperature output: 0-5V

Housing Construction: Polycarbonate (PC), UL94-V0 (head) UL94-HB (housing)

Plenum rated cable: 22 AWG

Environmental Protection: IP65 electronics, including conformal coated sensing element

Accuracy: ± (5% of reading + 0.15 m/s [30 fpm])

Stainless Steel Wand: 127mm (5")

Sensor Head Height: 64mm (.25")

Housing Length: 196 mm [7.75"]

Cable Length from Housing to Sensor Head:1m [3']

For use with HOBO® H22, U30, UX120-006M, MX1104, MX1105, and RX3000 loggers or stations
