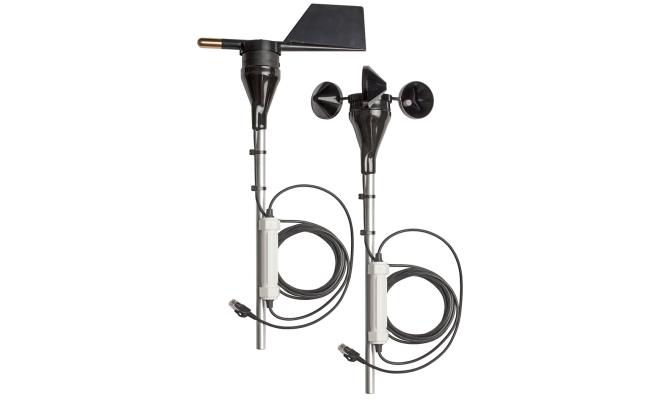

Onset S-WSET-B Wind Speed and Direction Set Smart Sensor (0~76 m/s, 0~355 degree)

Wind Speed/Gust (S-WSB-M003):

Measurement range: 0 to 76 m/s (0 to 170 mph)

Operating temperature range: -40° to 75°C (-40° to 167°F)

Accuracy: ±1.1m/s (2.4 mph) or ±4% of reading whichever is greater

Resolution: 0.5 m/s (1.1 mph)

Starting threshold: 1 m/s (2.2 mph)

Maximum wind speed survival: 76 m/s (170 mph)

Dimensions: 41 x 16 cm (16 x 6.5 in.) including 1.27 cm (0.5 in) diameter mounting rod; 5.5 cm (2.1 in.) drip overhang

Approximate weight: 700 g (1.5 lbs)

Cable length: 3.5 meter (11.5 ft)

Length of Smart Sensor Network Cable: 0.5m

Wind Direction (S-WDA-M003):

Measurement range: 0 to 355 degrees, 5 degree dead band

Operating temperature range: -40°C to +70°C (-40°F to +158°F)

Accuracy: ± 5 degrees

Resolution: 1.4 degrees

Starting threshold: 1 m/s (2.2 mph)

Maximum wind speed survival: 76 m/s (150 mph)

Dimensions: 46 x 20 cm (18 x 8.5 in) including 1.27 cm (0.5 in) diameter mounting rod, 2.5 mm (0.1 in) drip overhang

Approximate weight: 370 g (13 oz)

Cable length: 3.5 meter (11.5 ft)

Length of Smart Sensor Network Cable: 0.5m

Includes Onset's research-grade plug-and-play Wind Speed Smart Sensor and the Wind Direction Smart Sensor. This combination provides average wind speed, highest 3-second wind gust, and average wind direction for the measurement interval. These durable sensors will provide many years of accurate and reliable performance.
