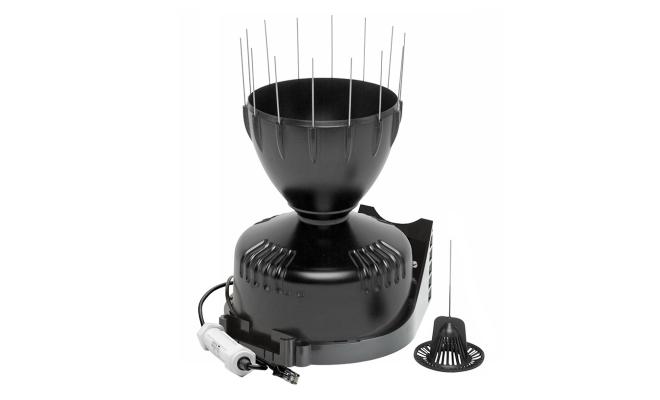

Onset S-RGF-M002 Davis 0.01" Rain Gauge Smart Sensor (0~10.2 cm)

Measurement Range: 0 to 10.2 cm (0 to 4 in.) per hour, maximum 4,000 tips per logging interval

Accuracy: ±4.0%, ±1 rainfall count between 0.2 and 50.0 mm (0.01 and 2.0 in.) per hour; ±5.0%, ±1 rainfall count between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour

Resolution: 0.2 mm

Operating Temperature Range: 0° to 50°C (32° to 122°F), survival -40° to 75°C (-40° to 167°F)

Dimensions: 16.5 cm opening diameter (6.5 in.) x 24 cm (9.5 in.) high; 214 cm2 (33.2 in.2) collection area

Weight: 1.2 kg (2.7 lbs)

Bits per Sample: 12

Number of Data Channels: 1

Cable Length Available: 2 m (6.6 ft)

Length of Smart Sensor Network Cable: 0.5 m (1.6 ft)

Featuring the AeroCone® design for better measurement accuracy in high-wind conditions, this rain gauge sensor is made from UV-stabilized ABS plastic to provide cost-effective rainfall measurement, and is plug-and-play compatible with all HOBO weather stations.
