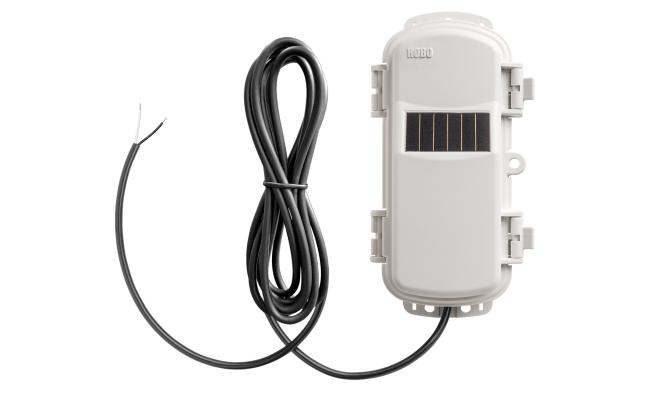

Onset RXW-UCC-868 HOBOnet Pulse Input - Electronic Switch Sensor (120 Hz)

866.5 MHz

Sensor:

Measurement Input Frequency: 120 Hz (120 pulses per second)

Measurement Range: 0-65,533 pulses per logging interval

Resolution: 1 pulse

Lockout Time: 45 µs ±10%

Minimum Pulse Width: 1 ms

Input/Output Impedance: 100 KΩ

Open Circuit Input Voltage: 3.3 V

Maximum Input Voltage: 3.6 V

Wireless Mote:

Operating Temperature Range:

-25° to 60°C (-13° to 140°F) with rechargeable batteries

-40 to 70°C (-40 to 158°F) with lithium batteries

Data Rate: Up to 250 kbps, non-adjustable

Logging Rate: 1 minute to 18 hours

Number of Data Channels: 2

Battery Type/Power Source: Two AA 1.2 V rechargeable NiMH batteries powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40° to 70°C (-40° to 158°F)

Memory: 16 MB

Dimensions:

Cable length: 6.5 m (21.3 ft.)

Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)

Weight:

Cable: 250 g (9 oz)

Mote: 223 g (7.87 oz)

What's In The Box

HOBOnet Pulse Input - Electronic Switch Sensor

Zip ties and screws for mounting

A wireless pulse input sensor that connects to sensors with a pulse output. This sensor is compatible with electronic switch closures, such as FET or open-collector outputs, or CMOS-level logic signals. HOBOnet wireless sensors communicate data directly to the HOBO RX3000 or the HOBO MicroRX station, or pass data through other wireless sensors back to the central station. They are preconfigured and ready to deploy, and data is accessed through HOBOlink, Onset's innovative cloud software platform.
