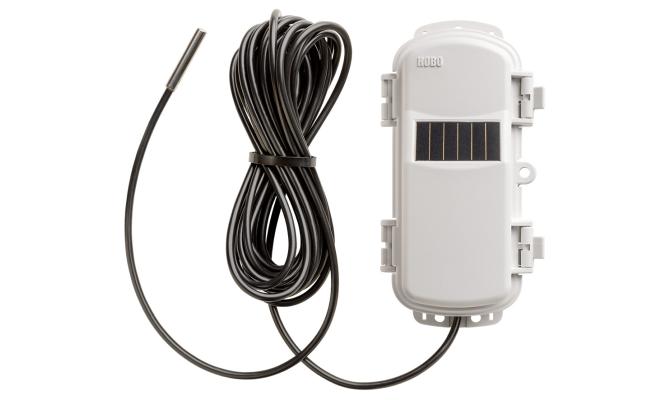

Onset RXW-TMB-868 HOBOnet Wireless Temperature Sensor (-40°~100°C)

868MHz

Sensor:

Measurement Range: -40° to 100°C (-40° to 212°F)

Accuracy: ±0.25°C from -40° to 0°C (±0.45°F from -40° to 32°F); ±0.20°C from 0° to 70°C (±0.36°F from 32° to 158°F); ±0.25°C from 70° to 100°C (±0.45°F from 158° to 212°F)

Resolution: 0.02°C (0.036°F)

Response Time (typical, to 90% of change): Without solar radiation shield: 2 minutes, 30 seconds in air moving 1 m/sec; With RS3-B solar radiation shield: 5 minutes in air moving 1 m/sec

Wireless Mote:

Operating Temperature Range: -25° to 60°C (-13° to 140°F) with rechargeable batteries; -40° to 70°C (-40° to 158°F) with lithium batteries

Data Rate: Up to 250 kbps, non-adjustable

Logging Rate: 1 minute to 18 hours

Battery Type/Power Source: Two AA 1.2 V rechargeable NiMH batteries powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40° to

70°C (-40° to 158°F)

Memory: 16 MB

Dimensions: Sensor: 5.3 x 33 mm (0.2 x 1.3 inches); Cable length: 5 m (16.4 ft); Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)

Weight: Sensor and cable: 82.5 g (2.91 oz); Mote: 223 g (7.87 oz)

Included items:

Cable ties

Screw

Manual
