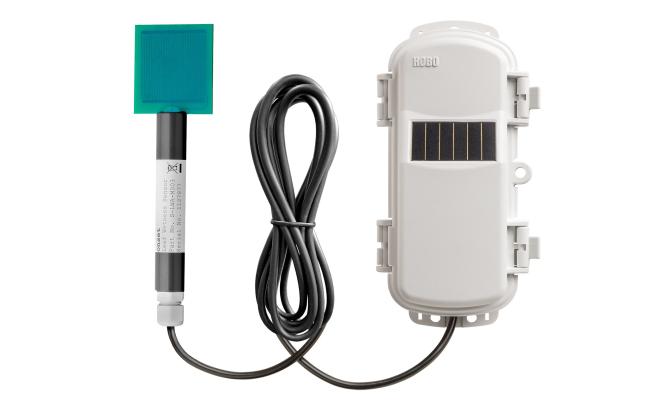

Onset RXW-LWA-921 HOBOnet Leaf Wetness Sensor (0~100%)

921 MHz

Sensor:

Measurement Range: 0 (dry) to 100% (wet)

Sensor Type: Capacitive grid

Repeatability: ±5%

Resolution: 0.59%

Wireless Mote:

Operating Temperature Range: -25° to 60°C (-13° to 140°F) with rechargeable batteries

-40° to 70°C (-40° to 158°F) with lithium batteries

Logging Rate: 1 minute to 18 hours

Number of Data Channels: 2

Battery Type/Power Source: Two AA 1.2 V rechargeable NiMH batteries powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40° to 70°C (-40° to 158°F)

Memory: 16 MB

Dimensions: Sensor grid: 4.7 x 5.1 cm (1.8 in x 2.0 inches)

Sensor housing: 12.2 x 1.8 cm (4.8 in x 0.7 inches)

Mounting bracket: 20 x 3 x 0.5 cm (8 x 1.3 x 0.2 inches)

Cable length: 2 m (6.56 ft)

Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)

Weight: Sensor and cable: 127 g (4.5 oz); with bracket: 290 g (10.2 oz)

Mote: 223 g (7.87 oz

What's In The Box:

HOBOnet Leaf Wetness sensor

Zip ties and screws for mounting

Provides accurate leaf wetness data for a variety of growing and research applications. This preconfigured, ready-to deploy sensor requires no painting or coating, uses a capacitive grid that is less sensitive to surface residues than resistive grid-based sensors, and comes preconditioned for long-term stability and consistent measurements between sensors.

HOBOnet wireless sensors communicate data directly to the HOBO RX3000 or the HOBO MicroRX station or pass data through other wireless sensors back to the central station. Data is accessed through HOBOlink, Onset's innovative cloud software platform.
