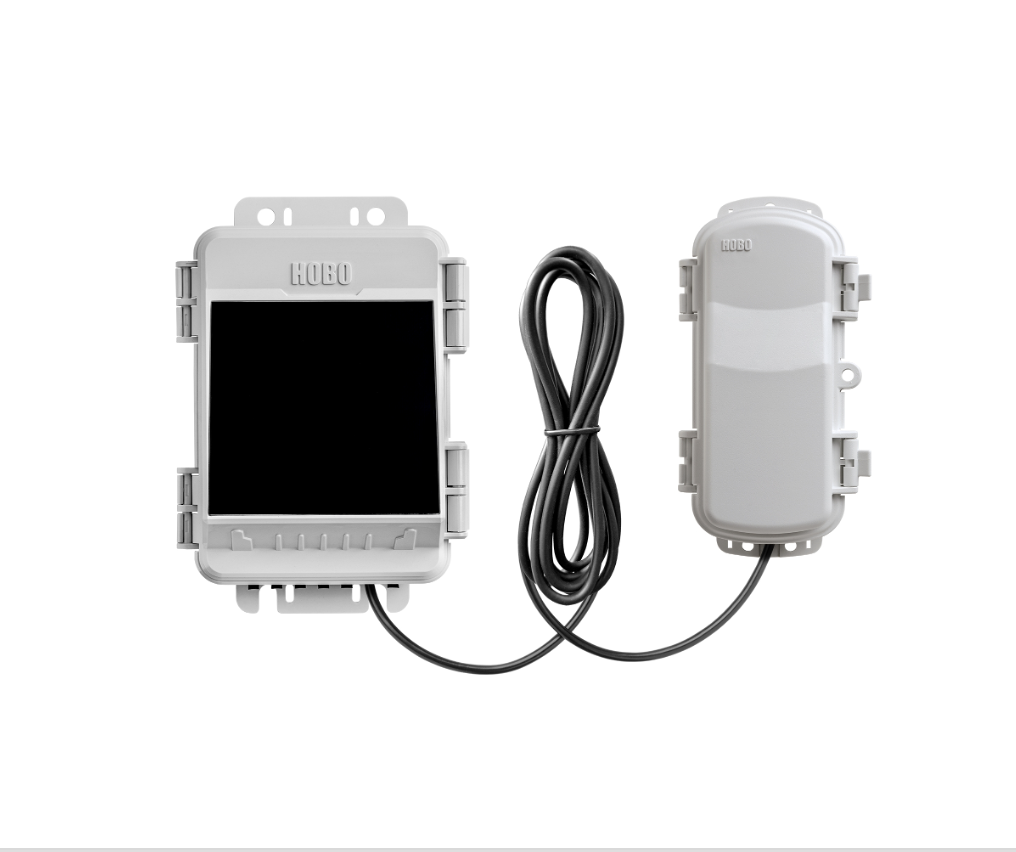

Onset RX2106-868 MicroRX Station with Solar Panel (-20°~60°C; -25°~60°C)

866.5 MHz

Station:

Operating Range: -20° to 60°C (-4° to 140°F)

Smart Sensor Connectors: 5

Smart Sensor Network Cable Length: 100 m (328 ft) maximum

Smart Sensor Data Channels: Maximum of 15 (some smart sensors use more than one data

channel; see sensor manual for details)

Logging Rate: 1 minute to 18 hours

Time Accuracy: ±8 seconds per month in 0° to 40°C (32°F to 104°F) range; ±30 seconds per month in -40° to 60°C (-40° to 140°F) range

Battery Type/Power Source: Integrated 1.7 watt solar panel and NiMH rechargeable battery pack; optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel

Dimensions: 19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.)

Weight: 678 g (23.9 oz)

Manager:

Operating Range: -25° to 60°C (-13° to 140°F)

Data Rate: Up to 250 kbps, non-adjustable

Dimensions: Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches); Cable length: 2 m (6.56 ft)

Weight: 159 g (5.62 oz)

What's In The Box

HOBO RX2106 MicroRX Station

Manager

Cable

Grease packet

Cable ties

Screws and washers

Six AA lithium batteries

Manual
