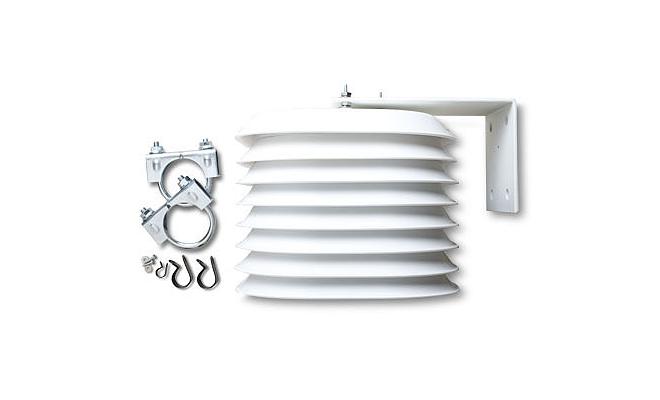

Onset M-RSA Solar Radiation Shield (assembled)

Height: 152 mm (6.0 inches); 165 mm (6.5 inches) with bracket

Width: 210 mm (8.3 inches)

Depth: 187 mm (7.4 inches); bracket protrudes an additional 44 mm (1.8 inches) from shield

Mounting: includes 1-5/8” u-bolts for mast mounting, or mount on a flat surface with user-supplied screws

The M-RSA Solar Radiation Shield is recommended for temperature and RH measurement accuracy in locations exposed to direct or reflected solar radiation. It can be mounted on masts between 1 and 1-5/8 inches (25 and 41 mm) in diameter or flat vertical surfaces. The Solar Radiation Shield works with HOBO® Pendant® loggers (UA-00x-xx), the HOBO Water Temp Pro v2 (U22-001), the TidbiT v2 (UTBI-001), HOBO Prov2 Internal Temp/RH data logger (U23-00x), HOBO MX2200 and MX2300 series data loggers, and external temperature sensors for Onset data loggers.
