Onset KIT-D-U20-04 HOBO Water Level Data Logger Deluxe Kit (13’) (0~145 kPa; -20°~50°C)

Pressure (Absolute) and Water Level Measurements:

Operation Range: 0 to 145 kPa (0 to 21 psia); approximately 0 to 4 m (0 to 13 ft) of water depth at sea level, or 0 to 7 m (0 to 23 ft) of water at 3,000 m (10,000 ft) of altitude

Factory Calibrated Range: 69 to 145 kPa (10 to 21 psia), 0° to 40°C (32° to 104°F)

Burst Pressure: Typical error: ±0.075% FS, 0.3 cm (0.01 ft) water; Maximum error: ±0.15% FS, 0.6 cm (0.02 ft) water

Water Level Accuracy: 69 to 145 kPa (10 to 21 psia), 0° to 40°C (32° to 104°F);

Raw Pressure Accuracy: ±0.3% FS, 0.62 kPa (0.09 psi) maximum error

Resolution: <0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water

Pressure Response Time (90%): <1 second; measurement accuracy also depends on temperature response time

Temperature Measurements:

Operation Range: -20° to 50°C (-4° to 122°F)

Accuracy: ±0.44°C from 0° to 50°C (±0.79°F from 32° to 122°F)

Resolution: 0.10°C at 25°C (0.18°F at 77°F)

Response Time (90%): 5 minutes in water (typical)

Logger:

Real-time Clock: ± 1 minute per month 0° to 50°C (32° to 122°F)

Battery: 2/3 AA, 3.6 Volt lithium, factory-replaceable

Memory (Non-volatile): 64K bytes memory (approx. 21,700 pressure and temperature samples)

Weight: approximately 210 g (7.4 oz)

Dimensions: 2.46 cm (0.97 inches) diameter, 15 cm (5.9 inches) length; mounting hole 6.3 mm (0.25 inches) diameter

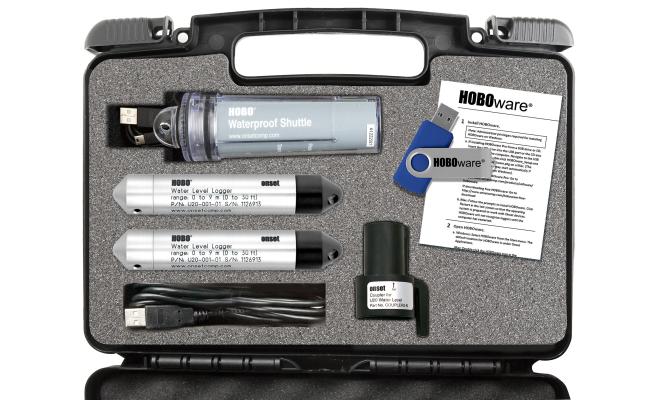

Delivery scope:

U20-001-04 HOBO data logger (13' range)

U20-001-04 HOBO data logger (13' range) for barometric pressure

U-DTW-1 HOBO waterproof shuttle with 5 interchangeable couplers

U20-CASE-1 carrying case

HOBOware Pro software

Manual
