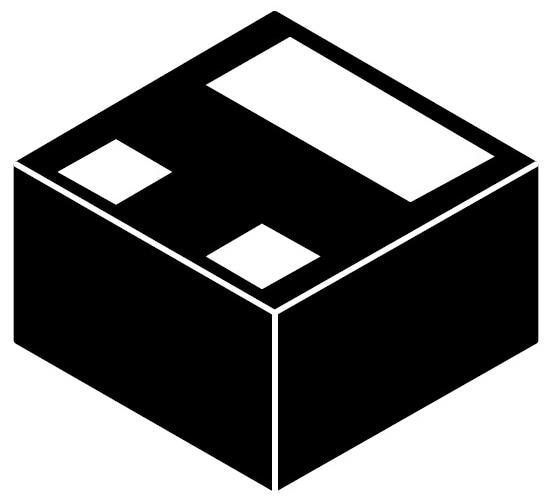

onsemi NTNS3193NZT5G MOSFETs NFET XLLGA3 20V 230MA

Fall Time: 110 ns

Rise Time: 35 ns

Technology: Si

Unit Weight: 2.600 mg

Channel Mode: Enhancement

Configuration: Single

Mounting Style: SMD/SMT

Transistor Type: 1 N-Channel

Qg - Gate Charge: 700 pC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 120 mW

Vgs - Gate-Source Voltage: - 8 V, + 8 V

Typical Turn-On Delay Time: 18 ns

Typical Turn-Off Delay Time: 201 ns

Id - Continuous Drain Current: 224 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 1.4 Ohms

Vds - Drain-Source Breakdown Voltage: 20 V

Vgs th - Gate-Source Threshold Voltage: 1 V
