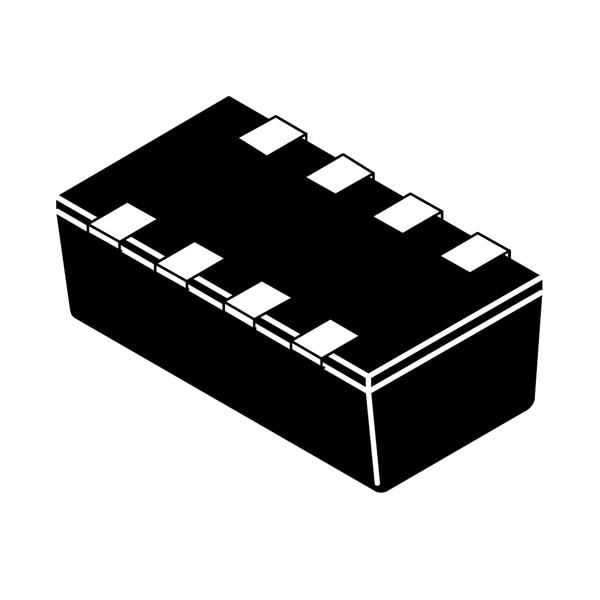

onsemi NSS20601CF8T1G BJTs - Bipolar Transistors OCTAL BUS TRANSCEIVR
Manufactureronsemi(View more products from this manufacturer)
ModelNSS20601CF8T1G
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 1.65 mm
Height: 1.05 mm
Length: 3.05 mm
Technology: Si
Unit Weight: 11.780 mg
Configuration: Single
Mounting Style: SMD/SMT
Transistor Polarity: NPN
Pd - Power Dissipation: 1.4 W
Gain Bandwidth Product fT: 140 MHz
Emitter- Base Voltage VEBO: 6 V
Collector- Base Voltage VCBO: 20 V
Maximum DC Collector Current: 6 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
DC Collector/Base Gain hfe Min: 200
Collector- Emitter Voltage VCEO Max: 20 V
Collector-Emitter Saturation Voltage: 110 mV
