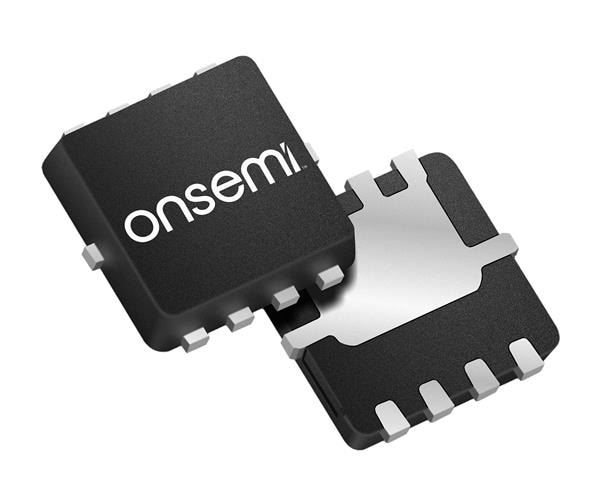

onsemi NCP3064MNTXG Voltage Converter 1.5A SW REG W/ENABLE

Shutdown: Shutdown

Topology: Boost, Buck

Unit Weight: 37.400 mg

Input Voltage: 3 V to 40 V

Mounting Style: SMD/SMT

Output Current: 1.5 A

Output Voltage: 3.3 V to 24 V

Load Regulation: Yes, Regulated

Number of Outputs: 1 Output

Quiescent Current: 85 uA

Input Voltage - Max: 40 V

Input Voltage - Min: 3 V

Switching Frequency: 150 kHz

Supply Voltage - Min: 3 V

Operating Supply Current: 7 mA

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
