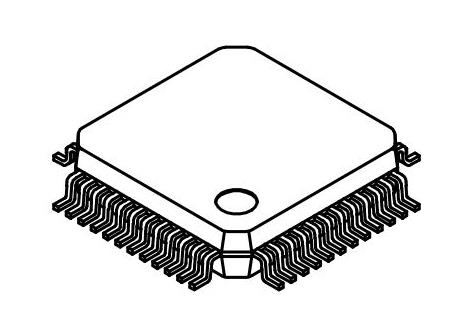

onsemi LV8968BBUWR2G High-Side, Low-Side Multi-purpose BLDC Pre-Driver, for Auto

Fall Time: 75 ns

Rise Time: 75 ns

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 400 mA

Output Voltage: 3.3 V, 5 V

Number of Drivers: 6 Driver

Number of Outputs: 6 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 28 V

Supply Voltage - Min: 8 V

Propagation Delay - Max: 120 ns

Operating Supply Current: 11 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 22 Ohms
