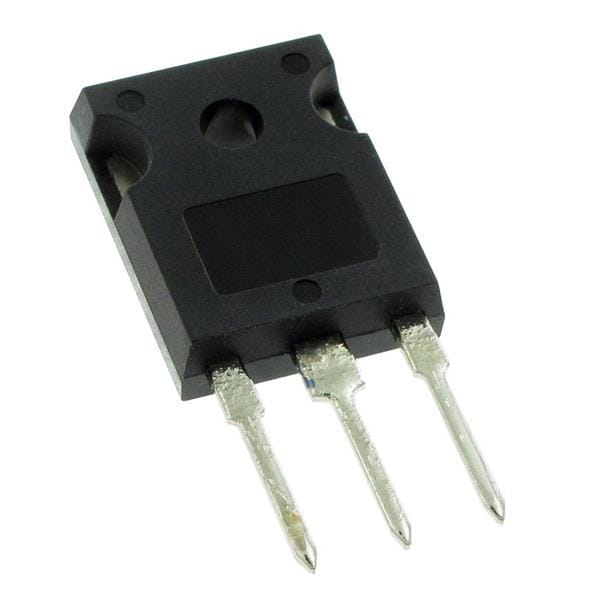

onsemi BDV64BG Darlington Transistors 10A 100V Bipolar Power PNP
Manufactureronsemi(View more products from this manufacturer)
ModelBDV64BG
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 4.9 mm
Height: 12.2 mm
Length: 15.2 mm
Unit Weight: 6.500 g
Configuration: Single
Mounting Style: Through Hole
Transistor Polarity: PNP
Emitter- Base Voltage VEBO: 5 V
Collector- Base Voltage VCBO: 100 V
Maximum DC Collector Current: 10 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 65 C
DC Collector/Base Gain hfe Min: 1000
Maximum Collector Cut-off Current: 400 uA
Collector- Emitter Voltage VCEO Max: 100 V
