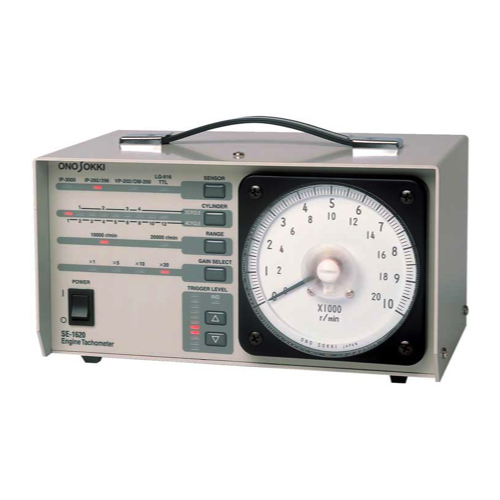

Onosokki SE-1620 Multi Sensor Engine Tachometer (12 V-24 VDC)

Applicable DetectorsIgnition pulse detectors (IP-292/IP-296/IP-3000/IP-3100), Magnetic detector (OM-200/1200), Magneto vibration detector (VP-202), Optical detector (LG-916, LG-9200, LG-930)

Power supply: 12 V to 24 VDC

Connector : RM12BRB-2P

Current consumption: Approx. 470 mA (at 12 VDC)

Operating temperature range: 0 to 40°C

Storage temperature range: -10 to 60°C

Operating humidity range : 80% RH max. (non-condensing)

Storage humidity range: 80% RH max. (non-condensing)

External dimensions: 221 (W) x 116 (H) x 150 (D) mm

Weight: Approx. 1.3 kg

Accessories

Analog output cable: 1.9 meter x 1 pc.

Pulse output cable: 1.9 meter x 1 pc.

Power cable: 3.4 meter x 1 pc.

User's manual: 1 copy
