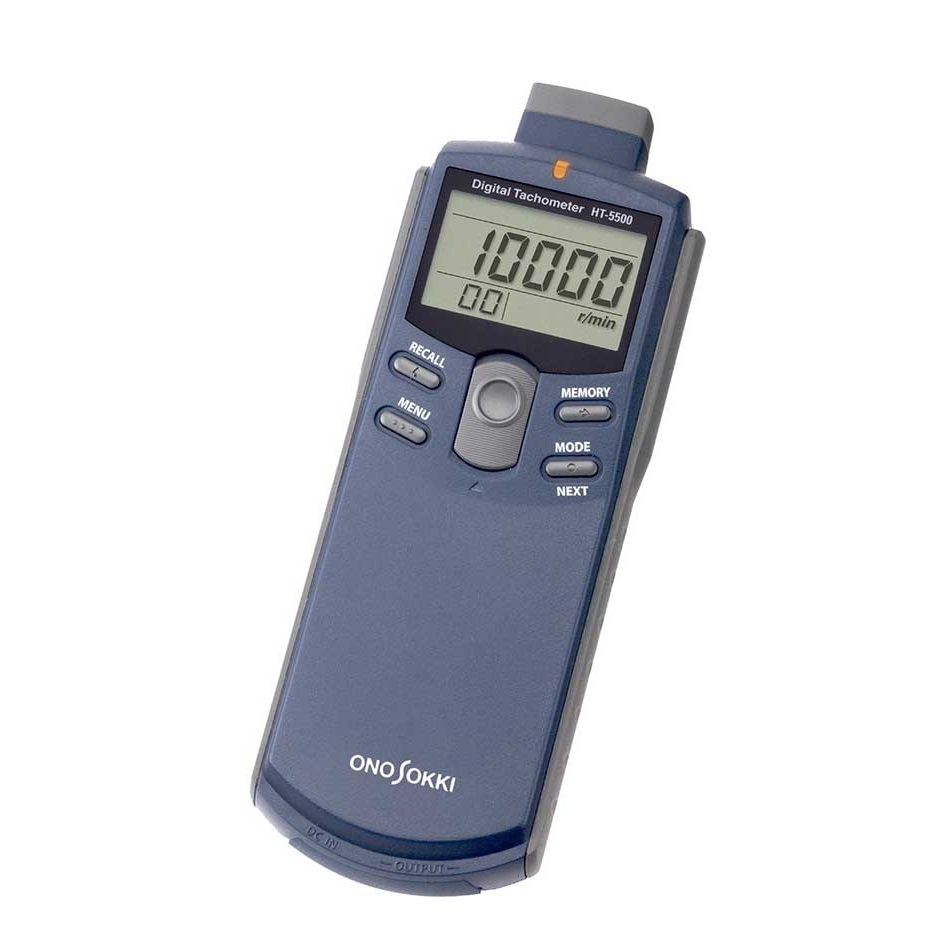

Onosokki HT-5500 Dual Contact Type Tachometer (6 - 99999rpm)

Description: Contact / Non-Contact type with analog and pulse output

Range: 6 - 99,999 rpm

Detection Distance: 20 to 300mm / 1 to 12 inches

Display: LCD 5 digit Display

Power / Battery life: Four (type AAA) batteries provide 32 hrs. of continuous use and 8 hours continuous use when the back light is on

Operating temperature: 41° to 104° F / 5° to 40° C

Standard Accessories: HT-0502 contact adapter, KS-300 measurement contact tip, KS-200 Circumferential m / min.speed ring, four AAA type batteries, HT-011 Reflective Marks 12mm squares (1 sheet) 25 marks, Carrying case.
