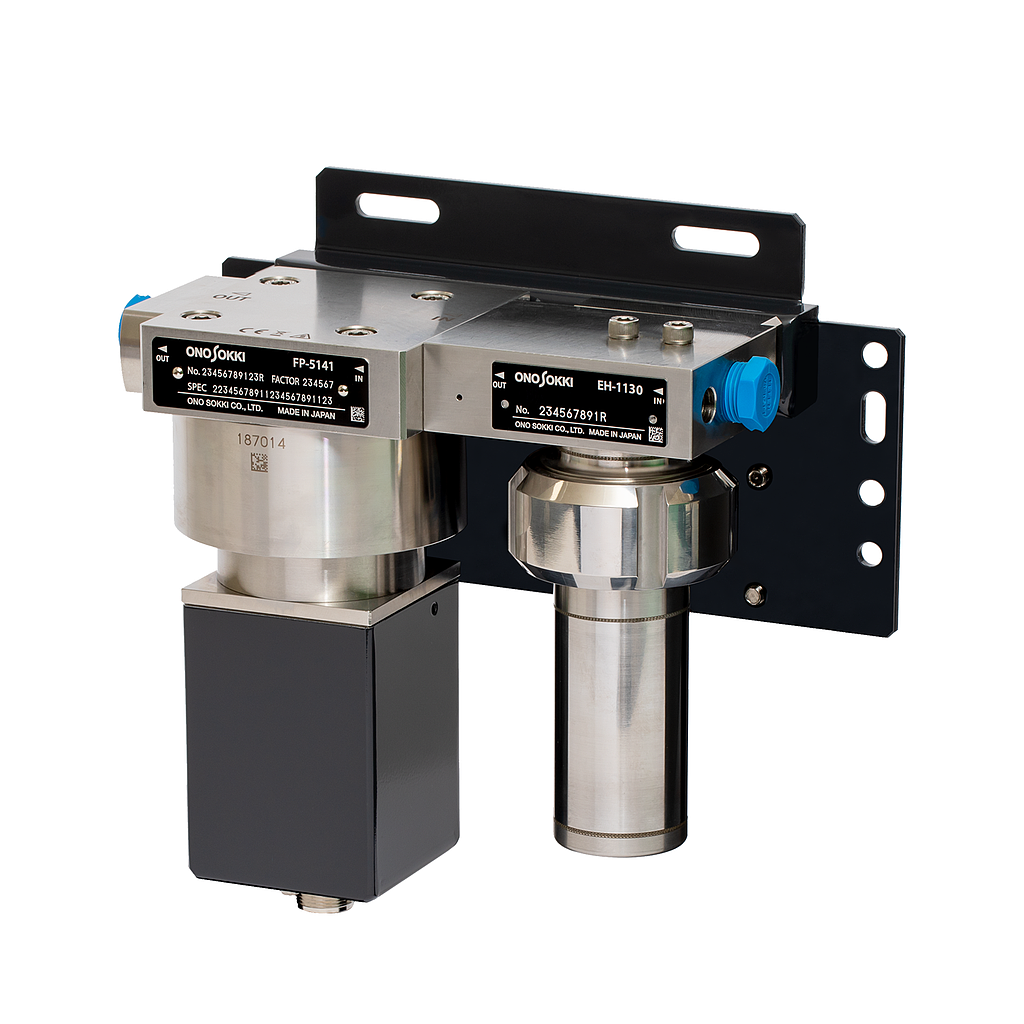

Onosokki FP-5143 Volumetric Flow Detectors (0.3 - 600L/h)

Applicable Fluids: Gasoline, light oil, kerosene, alcohol, biofuel and general petroleum-based hydraulic oil.

Applicable Flow Meter: Digital flow meters: FM-2500A / DF-0400A (*not applicable to FP-5132, 5134, 5142, 5144 and 5152) | DF-2200 (*not applicable to FP-5132, 5134, 5142, 5144, 5151 and 5152) FM-3100 / FM-0311

Measurement Range (Flow Rate): 0.3 to 600 L/h

Accuracy (Flow Rate): Within ±0.2% of reading.

Pressure Loss: FP-5140 Series: 2 kPa or less (at 60 L/h (gasoline))

Operating Temperature: Liquid: 0 to +65℃ | Ambient: 0 to +65℃

Maximum Operating Pressure: FP-5140 Series: 1 MPa

Measurement Range (Temperature, Pressure): 0 to +100 ℃, 0 to 1 MPa

Weight: Approximately 5.0 kg
