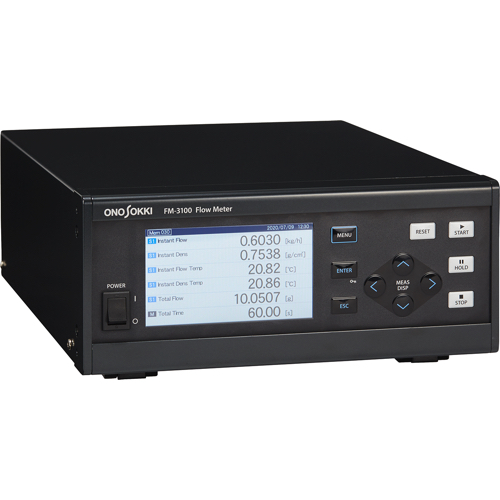

Onosokki FM-3100 Digital Flow Meter (100 to 240 VAC)

Applicable Detectors: FP-Series / FD-5110 / FX-Series / FZ-Series. *Please select the compatible module with each detector (sold separately).

Power Supply: 100 to 240 VAC (± 10%).

Power Consumption: 80 VA or less (when connected to the FP-2140S and the FM-3100).

Weight: Approximately 3 kg

Outer Dimensions: 240.0 (W) × 99.0 (H) × 296.0 (D) mm (The projection is not included.)

Compatible Module (*Sold Separately): FM-0311 FP Module Applicable Detectors: FP-4135, FP-213 / 213S, FP-2140H, FP-2240HA, FP-2140S, FP-215, FP-2250A, MF-3200 | FM-0321 FZ Module Applicable Detectors: FZ-2100, FZ-2200A | FM-0331 FX Module Applicable Detectors: FX-1110, FX-1120, FX-1130 | Remote Control: FM-0200

Standard Accessories: AC Power Cable, FM-0012 Analog Output Conversion Adapter (D-Sub to BNC 0.5m), Instruction Manual.

Datasheet
