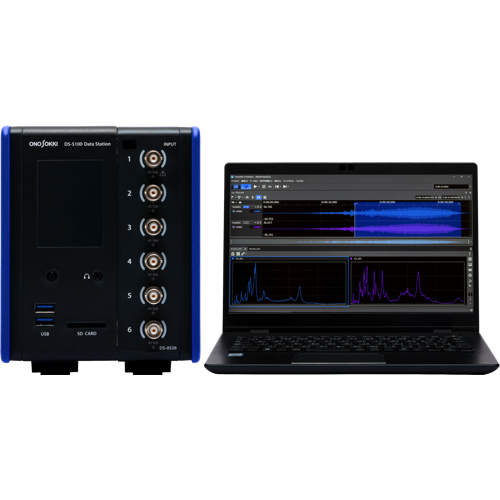

Onosokki DS-5000 Sound and Vibration Analysis System (0-40 kHz / 0-100 kHz)

Number of Input Channels: 3 to 240

Frequency Range: 0 to 40 kHz / 0 to 100 kHz

A/D Converter: 24-bit

Dynamic Range: 130 dB 40 kHz / 120 dB 100 kHz

Current Sensor Power: 4 mA

Operation Temperature: -10 °C to 50 °C

Dimensions: 130 to 450 mm(W)x 160 ｍｍ(H)x220 mm(D)(protrusions not included)

Weight: Minimum: 2.8 kg / Maximum: 8.9 kg

Software Options: OS-5100 Platform + OS-0512 Hardware Connecting Function (Required) / OS-0510 External Control Function / OS-0521 Filter Analysis Function / OS-0522 FFT Analysis Function / OS-0523 Tracking Analysis Function / OS-0524 Octave Analysis Function

Operating Environment (Common Specifications): Interface: LAN Terminal 1000base-T / OS: MS Windows® 10, MS Windows® 10 Enterprise, MS Windows® 10 Education (64-bit)

Operating Environment (Recommended Specifications): CPU: Intel® Core™ Processor (i7 or higher, 4 cores and 8 threads or more, 1.8 GHz or higher) / RAM: Minimum 16 GB

Standard Accessories: AC Adapter w/ Power Cable, Communication LAN Cable, One Operation Instruction Manual (Help File) and One Hardware Instruction Manual.
