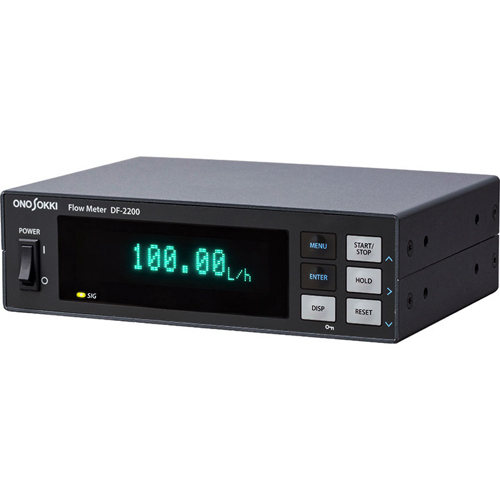

Onosokki DF-2200 On-Board Flow Meter

Applicable Flow Detectors: FP series detectors FP-4135, FP-213/213S, FP-3130/3130S, FP-3132/3132S, FP-2140H, FP-2240HA, FP-3140/3142, FP-2140S and MF-3200

Measurement Parameters: Instantaneous and accumulated flow rates, pressure, temperature and accumulated time.

Display: Fluorescent display tube, 11.45 mm× 69.85 mm (2-stage display)

Output #1: Voltage output (analog) for Instantaneous flow rate, Pressure, Temperature

Output #2: Voltage output (pulse) instantaneous flow rate, Pressure, Temperature, CAN output, RS-232C (option)

Measurement Time: every 1 sec update (instan) from start to stop (accum)

Power Requirement: Battery connecting: 10 to 28 VDC When using AC adapter (option): 100 to 240 VAC 50/60 Hz

Weight: Approx, 800g (1.76 lbs.)
