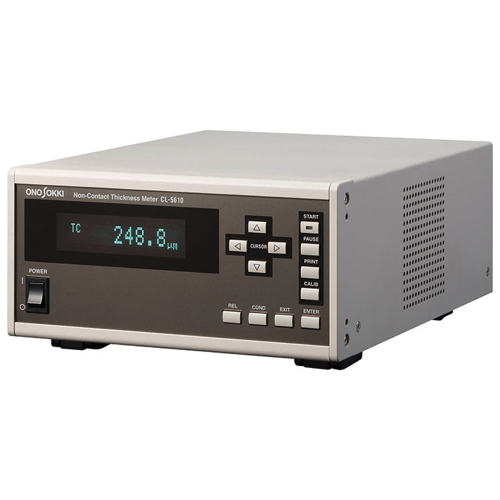

Onosokki CL-5610 Non-Contact Thickness (0.1 µm)

Measures: Thickness, gaps

Display: Vacuum fluorescent display; either 2-row display or 1-row display (large character size) can be selected.

Display Mode: ABS: Measured values DEVI: Deviation values (Measured values ûreference values) Maximum, Minimum, Maximum ûMinimum

Resolution: Depends on which sensors are used. 0.1, 0.5, 1, 2 um (0.02, 0.05, 0.2, 0.5, 1um by using optional CL-0200 *2)

Parameter settings: by key operation on the panel can be stored in the internal memory and held in the power-off memory

Sampling Rate: 20 ms

Averaging: Moving mean, 1 to 64 times

Real-time data processing: Max., min., max.-min. values of measuring data are displayed in real time Data initialized at the start and held at the stop.

Interface: RS-232C (Cable: AX-5022/Sold separately)

Output: Comparator function (Option: CL-0100 ) 3-CH output , Analog output (Option: CL-0100 ) Thickness, Gap A, B (linearity ±0.2% F.S./10% to 100% F.S.)

Operating temperature: 0 to +40°C

Humidity: 20 to 80% RH

Power Supply: 100 to 240 VAC, 50/60 Hz

Outer Dimensions: 210(W) mm x 99 (H) mm x 276(D) mm

Weight: 4.5kg
