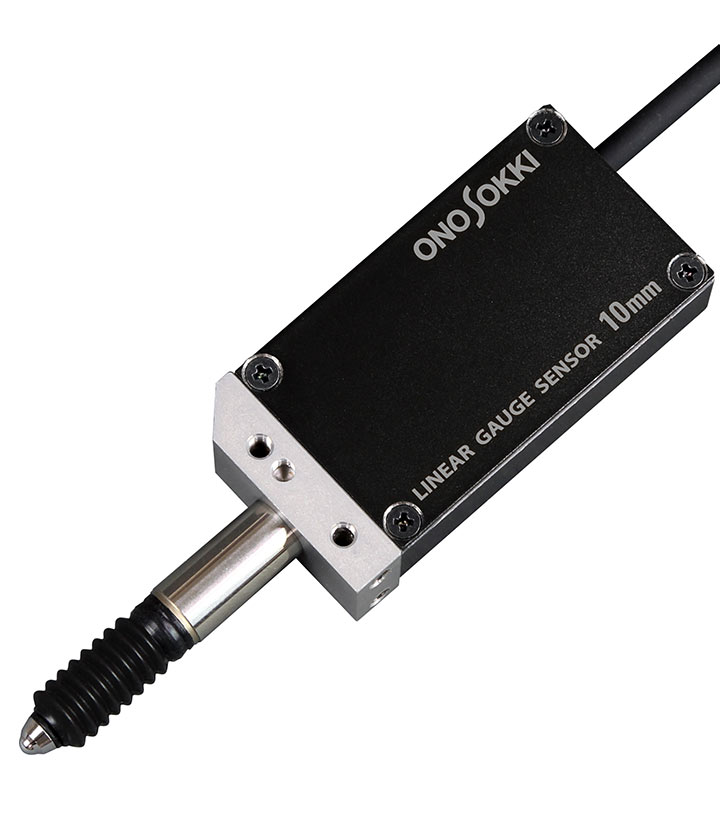

Onosokki BS-1210 Miniature Linear Gage Sensor (10 mm / 0.4")

Range: 10 mm / 0.4"

Resolution: 0.01 mm / 0.0005"

Response Speed: 36 in / s

Measuring Force: 150 gf / 5.3 ozf

Operating temperature: 32° to 122° F / 0° to 50° C

Stem Diameter: 8 mm

Contact Point Thread: ISO M2.5

Cable length (attached): 1.9 meter

Dimensions: L-3" W-1" TH-.5"

Weight: 3.9 oz / 110 g

Protection Class: IP-66

Standard accessories: 1.9 meter cable, contact point. Optional extension cables available up to 30 meters in length. Sensors can be connected to all of our gauge displays along with a PLC.
