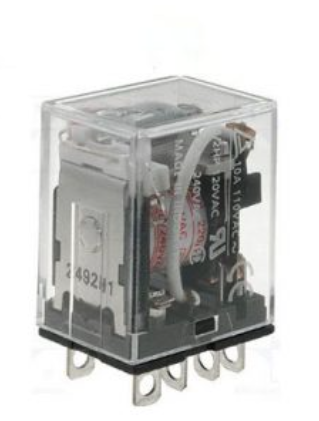

OMRON LY2N AC220/240 Relay
Number of pins: 8 large flat pins, 2 pairs of contacts
Load rating: 10A
Socket: PTF08A-E
Control voltage: AC220/240
Type: Power relay
Coil voltage: 220…240VAC
Contact type: DPDT
Current rating: 10A
Contact current (resistive load): 10A at 110VAC, 10A at 24VDC
Contact structure: Single-break
Contact material: Silver alloy
LED indicator: available
Polarity of coil: non-polarized
Cover: available
Installation: Plug-in socket
Connections: Plug-in terminals, Solder terminals
Operating temperature: -25…55°C
Operating humidity: 5…85%
Relative weight: 40g
Overall height: 28mm
Overall depth: 36mm
Included accessories: none.
