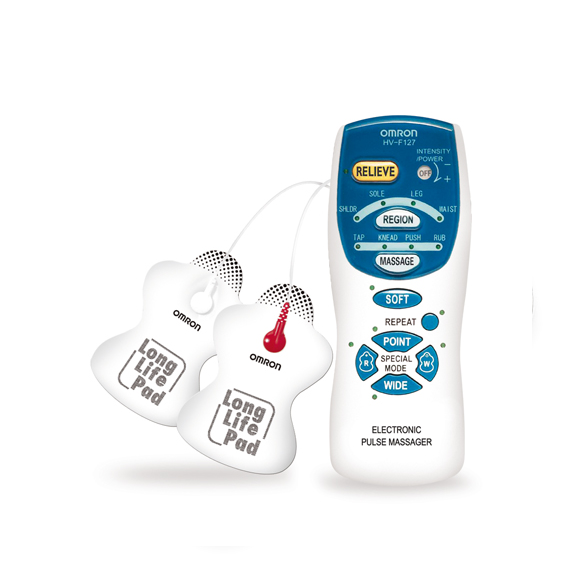

OMRON HV-F127 Electronic Pulse Massager

Power Supply: 3 VDC (with two AAA alkaline or manganese batteries)

Battery Life: New alkaline battery will last for approx. 3 months (when used for 15 minutes day continuously).

Note: Supplied battery is for trial use. This battery may run out within 3 months.

Frequency Generation: Approx. 1 to 1200 Hz

Power Consumption: Approx. 40 mA

Maximum Output Voltage: U ≤ 90 V (during 1 kΩ load)

Maximum Output Current: I ≤ 10 mA (during 1 kΩ load)

Operating Temperature and humidity: 10°C to 40°C, 30 to 85% RH

Storage Temperature and humidity: –20°C to 60°C, 10 to 95% RH

Main Unit Dimensions: 60 (W) x 154 (H) x 21 (D) mm

Weight: Approx. 120 g (including batteries)

Contents: Main unit, Electrode Cord, Long-Life Pad (to be referred to as “Pad” hereafter.) One set contains two Pads, AAA size (R03) batteries for trial use, Electrode Holder, Soft fabric pouch, Instruction Manual.
