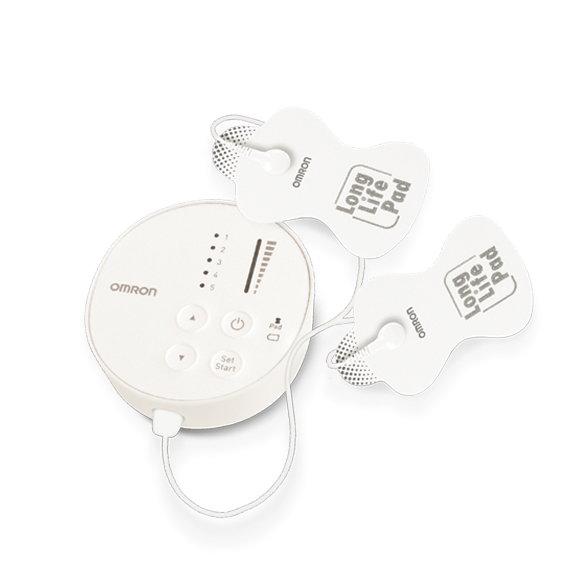

OMRON HV-F013 Electronic Pulse Massager

Electrical Characteristics: 3V (with two alkaline “AAA” batteries [LR03] or manganese [R03])

Battery Life: New batteries (two AAA alkaline batteries) will last for approx. 3 months (when used for 15 minutes a day, Lower Back Mode, max. intensity).

Energy Consumption: Approx. 30mA

Frequency: Approx. 1 to 108Hz

PULSE Duration: 100 μsec

Maximum Output Voltage: 32V (during 500Ω load)

Power Control: 10 intensity levels

Operating Temperature, Humidity (When using product): 10°C to 40°C, 30 to 80% RH

Storage Temperature, Humidity: 0°C to 40°C, 30 to 80% RH

Transportation Temperature, Humidity, Air Pressure: -20°C to 60°C, 10 to 95% RH, 700 to 1060 hPa

Weight: Approx. 75g (incl. batteries)

Outer Dimension (Width × Height × Depth): Approx. 75 × 70 × 22mm

Classification of ME equipment Internally powered

IP classification: IP 22*

Contents: Main Unit, Electrode Cord, Long Life Pads, Pad Holder, 2 “AAA” Batteries(LR03), Instruction Manual, Quick Start Guide/Pad Placement Guide
