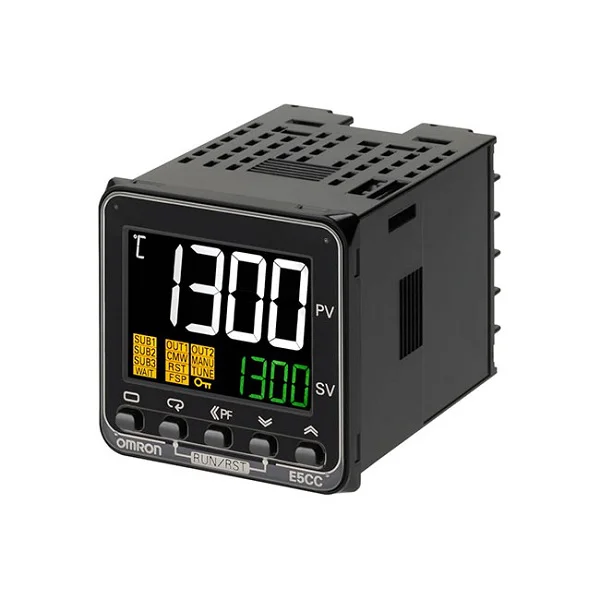

OMRON E5CC-RX2ASM-800 OMI Temperature Controller

Power Supply: 100-240 VAC

Frequency: 50/60 Hz

Power Consumption Range: 5.2VA

Control Method: On/Off, 2-PID

Setting Method: Digital setting with front panel keys

Display Method: 11-segment digital display, character height PV 15.2mm, SV 7.1mm

Output Type: Relay output

Auxiliary Outputs: 2

Temperature Sensor Input: Thermocouple K, J, T, E, L, U, N, R, S, B, C/W, or PL II/PT100 platinum resistance thermometer, JPT100/Infrared temperature sensor input 10-70 °C, 60-120 °C, 115-165 °C, or 140-260 °C

Analog Input: Current input 4-20 mA or 0-20 mA/Voltage input 1-5V, 0-5V, 0-10V, 0-50mV

Integration Time (I): 0-9999s, 0.0-999.9s

Derivative Time (D): 0-9999s, 0.0-999.9s

Control Time: 0.1, 0.2, 0.5, 1-99s

Alarm Setting Range: -1999-9999

Input Sampling Time: 50 ms

Size: 48 × 48 mm

Insulation Resistance: 20 mΩ

Dielectric Strength: 3000VAC/60s

Operating Temperature: -10-55°C

Operating Humidity: 25-85% RH

Weight: 120 g.
