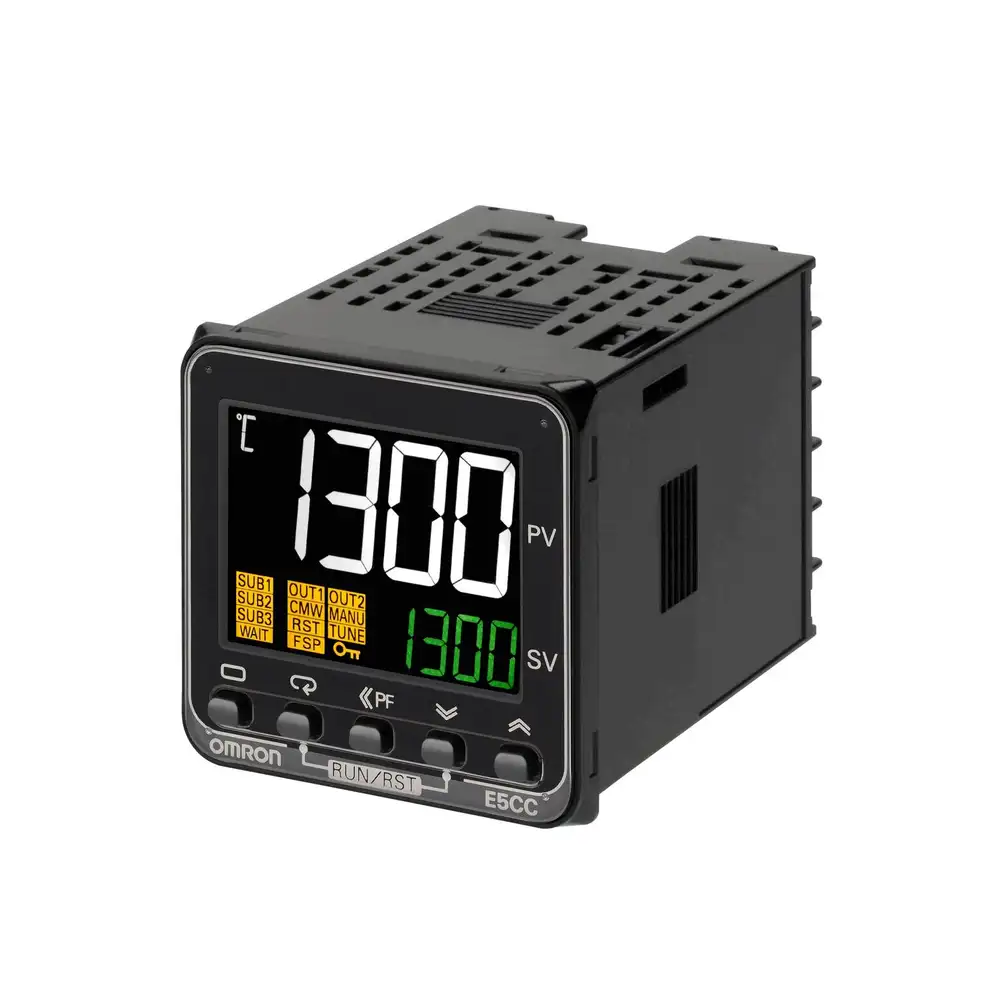

OMRON E5CC-QX3D5M-003 Digital Temperature Controller (24 VAC/DC)

Power supply: 24 VAC/DC

Frequency: 50/60 Hz

Operating voltage range: 85-110%

Power Consumption: 3.1VA (24VAC), 1.6W (24VDC)

Control method: ON/OFF, 2-PID

Installation method: digital setting by front panel keys

Display method: 11-segment digital display, PV character height 15.2mm, SV 7.1mm

Output type: voltage output (for driving SSR)

Auxiliary output: 3

Sensor input:

- Thermocouple: K, J, T, E, L, U, N, R, S, B, W, or PL II

- Platinum resistance thermometer: Pt100 or JPt100

- Infrared temperature sensor: 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C

Analog input: 4-20 mA or 0-20 mA current input/1-5V, 0-5V, 0-10V, 0-50mV voltage input

Integral time (I): 0-9999s, 0.0-999.9s

Derivative time (D): 0-9999s, 0.0-999.9s

Control time: 0.1, 0.2, 0.5, 1-99s

Alarm setting range: -1999-9999

Input sampling time: 50 ms

Dimensions: 48 × 48 mm

Insulation resistance: 20 MΩ

Dielectric strength: 3000VAC/60s

Ambient Temperature: -10-55°C

Ambient Humidity: 25-85%RH

Weight: 120 g
