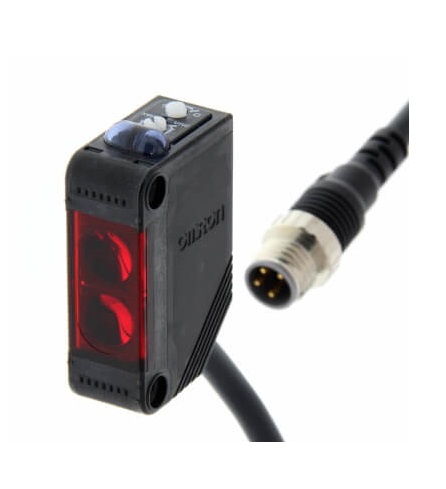

OMRON E3Z-R61 Compact Photoelectric Sensor (4000 mm, NPN)

Shape: Cuboid

Sensing method: Retro-reflective

Sensing distance: 4000 mm

Sensing distance (min.): 100 mm

Setting method: Manual adjustment

Connection method: M8 pigtail connector 4 pin

Cable length: 0.3 m

Output type: NPN

Operation mode: Dark-ON, Light-ON

Response time: 1 ms

Material housing: PBT

Thread size: Other

Product Width (unpacked): 10.8 mm

Product Height (unpacked): 31 mm

Product Depth (unpacked: 20 mm

Type of light: Polarized red light

Power supply voltage: 12-24 V

Features: M.S.R.

Degree of protection (IP): IP67
