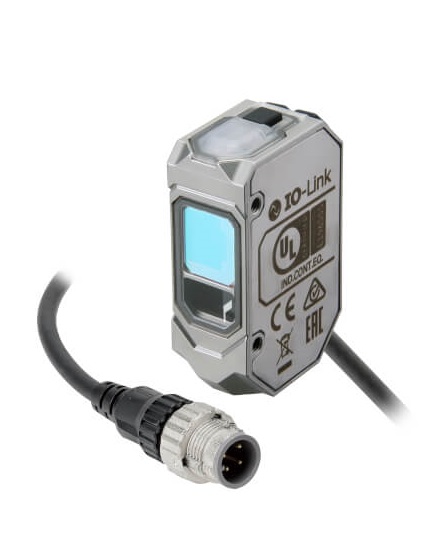

OMRON E3AS-HL150LMT Distance-settable Photoelectric Sensor

Shape: Cuboid

Sensing method: Background suppression

Sensing distance: 150 mm

Sensing distance (min.): 35 mm

Setting method: IO-Link, Teach-In

Connection method: M12 pigtail Smartclick connector

Cable length: 0.3 m

Output type: IO-Link, PNP

Operation mode: Dark-ON, Light-ON

IO-Link baud rate: COM3 (230.4 kbps)

Response time: 1.5 ms

Material housing: Stainless steel

Product Width (unpacked): 15.5 mm

Product Height (unpacked): 48.6 mm

Product Depth (unpacked): 30.4 mm

Type of light: Laser diode, red light

Laser class: 1

Spot size: 8 mm x 1.3 mm

Power supply voltage: 10-30 V
