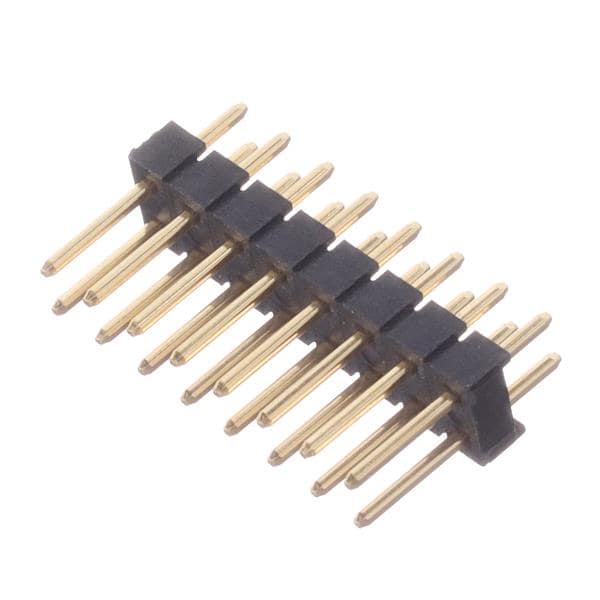

Omron Electronics XG8W-1631 Pin Strip Plug Straight Term 16Contact AuPlating

Pitch: 2.54 mm (0.1 in)

Row Spacing: 2.54 mm (0.1 in)

Unit Weight: 1.095 g

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 3 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 300 V

Contact Plating: Gold

Contact Material: Brass

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 16 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 55 C
