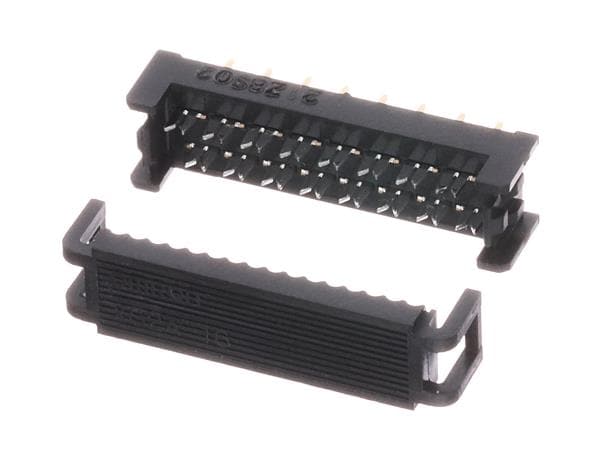

Omron Electronics XG2A-1602 Ribbon Cable Connector w/Reverse Terminal 16 Contacts

Pitch: 2.54 mm (0.1 in)

Wire Gauge: 28 AWG

Row Spacing: 2.54 mm (0.1 in)

Unit Weight: 4.748 g

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 1 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 250 V

Contact Plating: Tin

Contact Material: Copper Alloy

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: IDC

Number of Positions: 4 Position

Insulation Resistance: 1 GOhms

Termination Post Length: 3.2 mm (0.126 in)

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C
