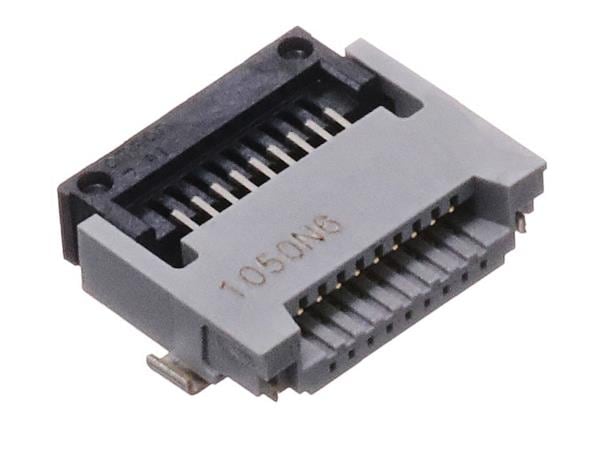

Omron Electronics XF3M-0925-1B Connectors FPC Connector
ModelXF3M-0925-1B
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 0.5 mm
Housing Color: Gray
Current Rating: 500 mA
Mounting Angle: Right Angle
Mounting Style: Cable
Voltage Rating: 50 V
Contact Plating: Gold
Contact Location: Top Contact
Contact Material: Spring Copper Alloy / Nickel Substrate
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: SMD/SMT
Flammability Rating: UL 94 V-0
Number of Positions: 9 Position
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
